Auto-Cassetta N2607 /00 Stereo

Auto-Cassetta N2607 /00 Stereo; Philips; Eindhoven (ID = 764143) R-Player

Auto-Cassetta N2607 /00 Stereo; Philips; Eindhoven (ID = 1989240) R-Player
Auto-Cassetta N2607 /00 Stereo; Philips; Eindhoven (ID = 111404) R-Player Auto-Cassetta N2607 /00 Stereo; Philips; Eindhoven (ID = 111406) R-Player
Auto-Cassetta N2607 /00 Stereo; Philips; Eindhoven (ID = 97331) R-Player Auto-Cassetta N2607 /00 Stereo; Philips; Eindhoven (ID = 111407) R-Player
Auto-Cassetta N2607 /00 Stereo; Philips; Eindhoven (ID = 472815) R-Player Auto-Cassetta N2607 /00 Stereo; Philips; Eindhoven (ID = 472816) R-Player
Auto-Cassetta N2607 /00 Stereo; Philips; Eindhoven (ID = 472817) R-Player Auto-Cassetta N2607 /00 Stereo; Philips; Eindhoven (ID = 472818) R-Player
Auto-Cassetta N2607 /00 Stereo; Philips; Eindhoven (ID = 472821) R-Player Auto-Cassetta N2607 /00 Stereo; Philips; Eindhoven (ID = 1606907) R-Player
Use red slider bar for more.
Auto-Cassetta N2607 /00 Stereo; Philips; Eindhoven (ID = 111404) R-Player
Philips; Eindhoven: Auto-Cassetta N2607 /00 Stereo [R-Player] ID = 111404 728x700

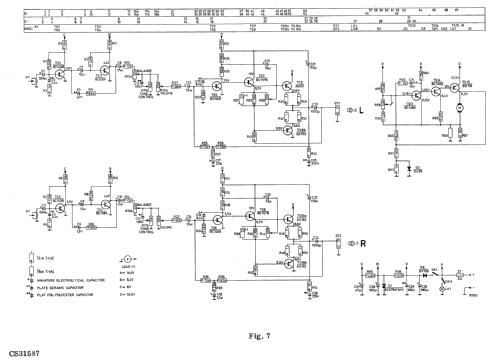

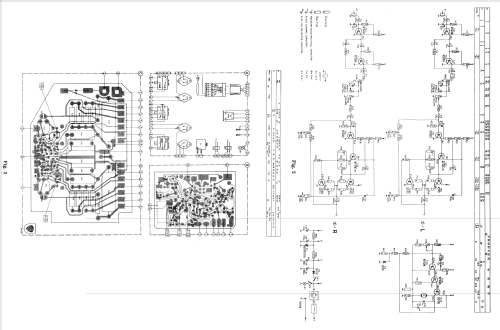

Select picture or schematic to display from thumbnails on the right and click for download.
For model Auto-Cassetta N2607 /00 Stereo, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1972–1975 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 15: BC149 BC148 BC148 BC107 AD161 AD162 BC149 BC148 BC148 BC107 AD161 AD162 BC148 BC148 BD138 BZX79 BY126
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Auto-Cassetta N2607 /00 Stereo - Philips; Eindhoven tubes
Material Plastics (no bakelite or catalin)
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 150 x 112 x 57 mm / 5.9 x 4.4 x 2.2 inch
Notes Wiedergabegerät für Compact-Cassetten zum Einbau in ein Kraftfahrzeug. Stereo-NF-Verstärker mit 2 Endstufen je 5 W; Übertragungsbereich 60-10000 Hz.
Net weight (2.2 lb = 1 kg) 1.5 kg / 3 lb 4.9 oz (3.304 lb)
External source of data Erb
Source of data Handbuch VDRG 1972/1973
Literature/Schematics (1) -- Original-techn. papers.
