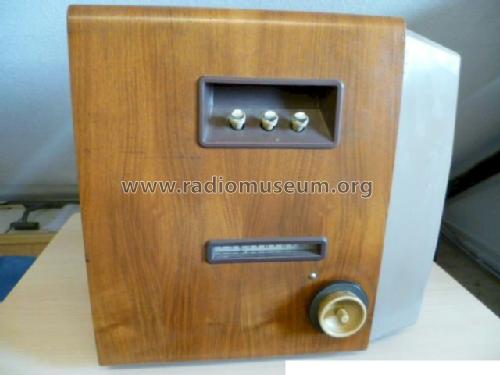

Automatic 17TX333A /10; Philips; Eindhoven (ID = 1482355) Television Automatic 17TX333A /10; Philips; Eindhoven (ID = 1482356) Television
Automatic 17TX333A /10; Philips; Eindhoven (ID = 1482357) Television Automatic 17TX333A /10; Philips; Eindhoven (ID = 1482358) Television
Use red slider bar for more.
Automatic 17TX333A /10; Philips; Eindhoven (ID = 1482348) Television
Philips; Eindhoven: Automatic 17TX333A /10 [Television] ID = 1482348 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Automatic 17TX333A /10, Philips; Eindhoven (tubes international!); Miniwatt:
Ebay auction by user gg.dornheim 151073697434

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1963 Category: Television Receiver (TV) or Monitor
Valves / Tubes 22: PC88 PC86 PCC189 PCF86 EF183 EF184 EF184 PCL84 PCF80 PCF80 PCL85 PCL86 ECH83 PCF80 PF86 PCL85 ECH83 PCF80 PL500 PY88 DY87 AW43-89
Semiconductors (the count is only for transistors) OA70 OA81 BA100 BY100
Main principle Superhet with RF-stage; ZF/IF 38900/5500 kHz
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Automatic 17TX333A /10 - Philips; Eindhoven tubes
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 480 x 380 x 370 mm / 18.9 x 15 x 14.6 inch
Notes

17"/43 cm b/w TV with CCIR B/G standard VHF/UHF tuner.

220 W power consumption.

Net weight (2.2 lb = 1 kg) 18 kg / 39 lb 10.4 oz (39.648 lb)
Source of data -- Original-techn. papers.
