Automatic L3A41T/30 R

Automatic L3A41T/30 R; Philips - Österreich (ID = 530668) Radio Automatic L3A41T/30 R; Philips - Österreich (ID = 530670) Radio

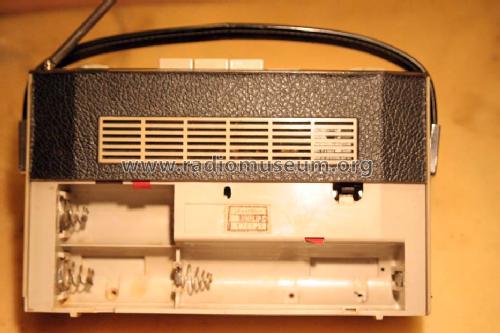

Automatic L3A41T/30 R; Philips - Österreich (ID = 530669) Radio Automatic L3A41T/30 R; Philips - Österreich (ID = 530667) Radio
Automatic L3A41T/30 R; Philips - Österreich (ID = 530671) Radio
Use red slider bar for more.
Automatic L3A41T/30 R; Philips - Österreich (ID = 530668) Radio
Philips - Österreich: Automatic L3A41T/30 R [Radio] ID = 530668 933x622
Select picture or schematic to display from thumbnails on the right and click for download.
For model Automatic L3A41T/30 R, Philips - Österreich

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1964 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9:
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     7 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: Automatic L3A41T/30 R - Philips - Österreich
Material Various materials
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 240 x 68 x 145 mm / 9.4 x 2.7 x 5.7 inch
Net weight (2.2 lb = 1 kg) 1.3 kg / 2 lb 13.8 oz (2.863 lb)
Collectors' prices
Source of data - - Data from my own collection

Model page created by Siegfried Steiner. See "Data change" for further contributors.
