• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1936/1937

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 7335

• • Brand: Deutsche Philips-Ges.

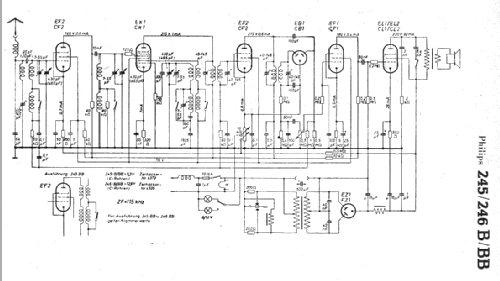

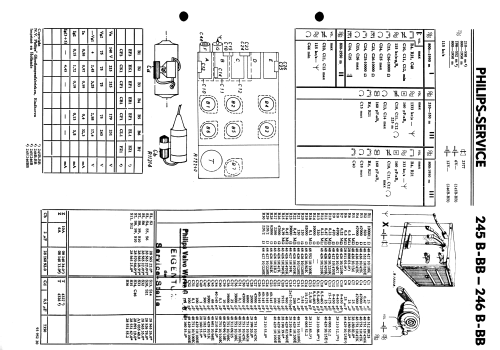

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• EF2 EK1 EF2 EB1 EF1 EL1 or EL2 EZ1

• Main principle
• Superhet with RF-stage; ZF/IF 115 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 3 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: 245B/BB - Philips Radios - Deutschland

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 300 x 200 x 190 mm / 11.8 x 7.9 x 7.5 inch

• Notes

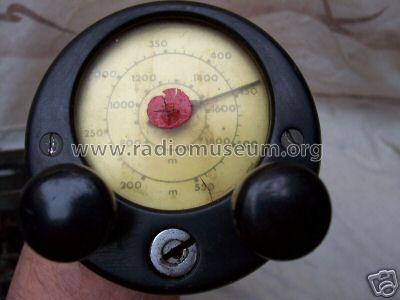

• Abgesetztes Bedienteil mit Skala, über biegsame Wellen mit Hauptgerät verbunden.

  Lautsprecher Durchmesser 22,5 cm, Chassis 17 cm

• Net weight (2.2 lb = 1 kg)
• 16 kg / 35 lb 3.9 oz (35.242 lb)

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange-Nowisch

• Other Models

• Here you find 2544 models, 2257 with images and 1566 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Philips Radios - Deutschland
