Autoradio Stereo 22AC669

Autoradio Stereo 22AC669; Philips - Österreich (ID = 1080158) Car Radio

Autoradio Stereo 22AC669; Philips - Österreich (ID = 1080159) Car Radio

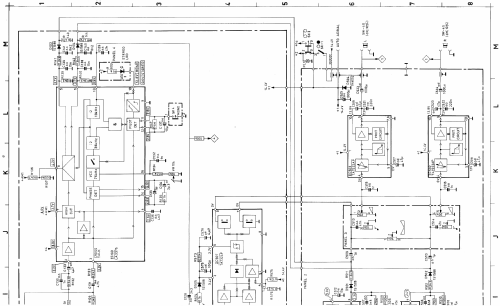

Autoradio Stereo 22AC669; Philips - Österreich (ID = 1080160) Car Radio
Use red slider bar for more.
Autoradio Stereo 22AC669; Philips - Österreich (ID = 1080158) Car Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1982 ?? Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 2: TA7303 LA1130 LA2110 LA3375 TA7324 AN7311 TA7222 TA7222
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 5 W (unknown quality)
from Radiomuseum.org Model: Autoradio Stereo 22AC669 - Philips - Österreich
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 180 x 48 x 149 mm / 7.1 x 1.9 x 5.9 inch
Notes Sono presenti anche 8 integrati:TA7303,LA1130,LA2110,LA3375,TA7324,AN7311,TA7222,TA7222,e 19 diodi.
Source of data -- Original-techn. papers.

Model page created by Pasquale Baiocato. See "Data change" for further contributors.
