B1E37T

B1E37T; Philips Ibérica, (ID = 2090808) Radio

B1E37T; Philips Ibérica, (ID = 2090809) Radio

B1E37T; Philips Ibérica, (ID = 2090810) Radio

B1E37T; Philips Ibérica, (ID = 2090811) Radio

B1E37T; Philips Ibérica, (ID = 2090812) Radio

B1E37T; Philips Ibérica, (ID = 2090813) Radio
B1E37T; Philips Ibérica, (ID = 222329) Radio
Use red slider bar for more.

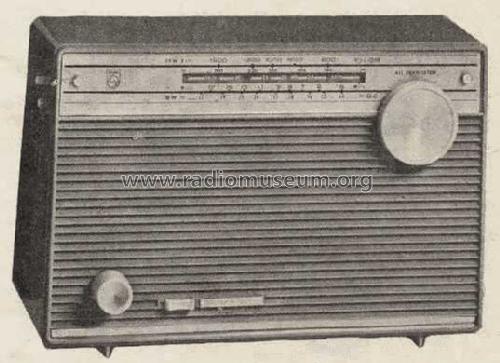

B1E37T; Philips Ibérica, (ID = 222329) Radio
Philips Ibérica,: B1E37T [Radio] ID = 222329 537x390
Select picture or schematic to display from thumbnails on the right and click for download.
For model B1E37T, Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona

Country:  Spain
Manufacturer / Brand:  Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona
Year: 1960 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: AF115 AF115 AF115 AC126 AC128 AC128 OA79 OA79
Main principle Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: B1E37T - Philips Ibérica, COPRESA,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 290 x 188 x 116 mm / 11.4 x 7.4 x 4.6 inch
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.



All listed radios etc. from Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona
Here you find 539 models, 474 with images and 440 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
