For model B1F61U - BF161U, Philips France; Paris

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1956–1958 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UF41 UBC41 UL41 UY41 or UY42
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage AC/DC-set / 16-110 Hz, 110-127 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: B1F61U - BF161U - Philips France; Paris
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 240 x 170 x 130 mm / 9.4 x 6.7 x 5.1 inch
Notes

4 gammes d'ondes : BE (bande étalée) sur 50 m, OC de 16 à 52 m, PO de 185 à 575 m, GO de 11500 à 1950 m. Cadre ferroceptor incorporé.

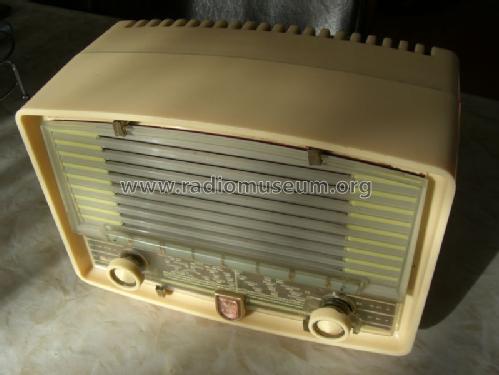

Coffret polystyrène en deux coquilles, couleurs bordeaux, ivoire ou vert. Motif décoratif teinte or, grille cadran plexiglass.

Dans le schéma du modèle, lampe UF42 au lieu de UF41 est dessinée, ce qui est une erreur. Lampes UY41 et UY42 sont interchangéables : la documentation technique mentionne UY42, l'autocollant à l'interieur de l'appareil indique UY41.

Le type BF161U est seulement mentionné dans les publicités d'années 1957-1958; réellement le modèle est désigné B1F61U.

Net weight (2.2 lb = 1 kg) 2.4 kg / 5 lb 4.6 oz (5.286 lb)
Collectors' prices
Mentioned in -- Original-techn. papers.
Literature/Schematics (1) -- Original prospect or advert (Gamme 1957, 1958)

Model page created by Jacky Parmentier. See "Data change" for further contributors.
