B2CA99U

B2CA99U; Philips; Calcutta (ID = 1696337) Radio

B2CA99U; Philips; Calcutta (ID = 1696338) Radio

B2CA99U; Philips; Calcutta (ID = 1696339) Radio

B2CA99U; Philips; Calcutta (ID = 1696342) Radio

B2CA99U; Philips; Calcutta (ID = 1696343) Radio

B2CA99U; Philips; Calcutta (ID = 1696346) Radio
B2CA99U; Philips; Calcutta (ID = 1696347) Radio
Use red slider bar for more.
B2CA99U; Philips; Calcutta (ID = 1696347) Radio
Philips; Calcutta: B2CA99U [Radio] ID = 1696347 600x473
Select picture or schematic to display from thumbnails on the right and click for download.
For model B2CA99U, Philips; Calcutta:

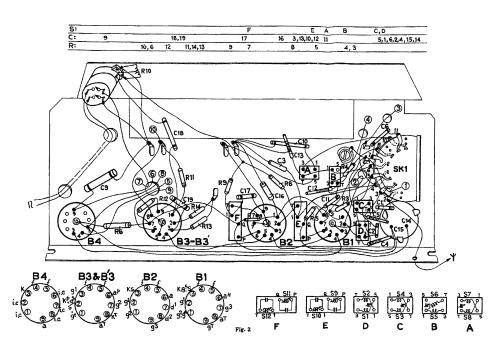

Service documentation

Country:  India
Manufacturer / Brand:  Philips; Calcutta
Year: 1961 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH81 UBF89 UCL82 UY85
Main principle Superheterodyne (common); ZF/IF 452 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 230 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: B2CA99U - Philips; Calcutta
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 308 x 204 x 150 mm / 12.1 x 8 x 5.9 inch
Notes

Wave bands: MW 185 - 580 m, SW 16.75 - 62.2 m. Speaker AD3500X.

Mentioned in -- Original-techn. papers.

Model page created by Mark Hippenstiel. See "Data change" for further contributors.



All listed radios etc. from Philips; Calcutta
Here you find 70 models, 70 with images and 55 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
