For model B2E92U, Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona

Country:  Spain
Manufacturer / Brand:  Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: HCH81 HF93 HBC90 HL94 HY90
Main principle Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 110-127 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 5 W (unknown quality)
from Radiomuseum.org Model: B2E92U - Philips Ibérica, COPRESA,
Material Bakelite case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 280 x 184 x 152 mm / 11 x 7.2 x 6 inch
Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
External source of data Ernst Erb
Source of data Radio Historia y Técnica, J.J.E.

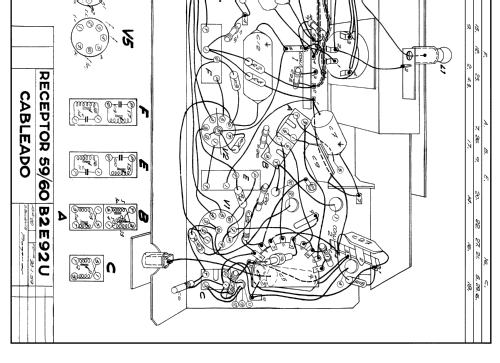

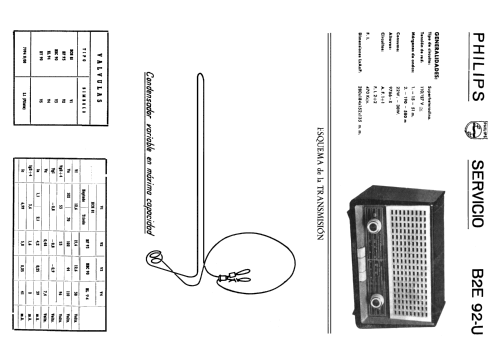

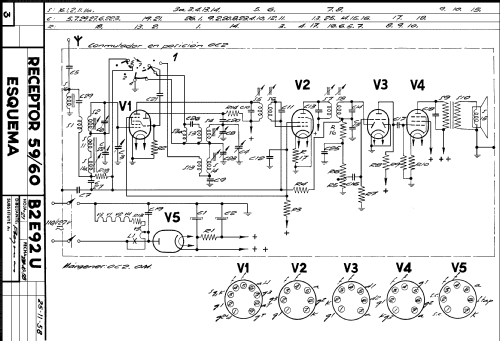

Literature/Schematics (1) -- Original-techn. papers.
