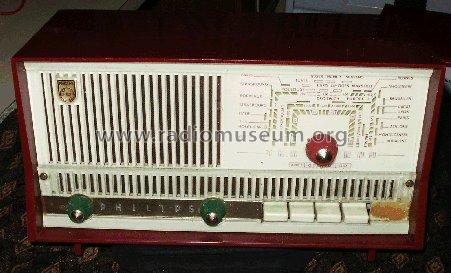

For model B2F90A, Philips France; Paris

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1960 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH81 UBF80 UCL82 UY85
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 124/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out 1 W (unknown quality)
from Radiomuseum.org Model: B2F90A - Philips France; Paris
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 296 x 167 x 147 mm / 11.7 x 6.6 x 5.8 inch
Notes

Autotrafo, keine Netztrennung !!!

With the same chassis of the model Radiola RA209A.

Net weight (2.2 lb = 1 kg) 2.8 kg / 6 lb 2.7 oz (6.167 lb)
Collectors' prices
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Miguel Mochón-Martínez. See "Data change" for further contributors.
