RA209A

RA209A; Radiola marque (ID = 1815215) Radio
RA209A; Radiola marque (ID = 238662) Radio RA209A; Radiola marque (ID = 802427) Radio
RA209A; Radiola marque (ID = 1676372) Radio RA209A; Radiola marque (ID = 1676373) Radio
RA209A; Radiola marque (ID = 1676377) Radio RA209A; Radiola marque (ID = 1676378) Radio
RA209A; Radiola marque (ID = 1676379) Radio RA209A; Radiola marque (ID = 1676380) Radio
RA209A; Radiola marque (ID = 1815204) Radio RA209A; Radiola marque (ID = 1815206) Radio
Use red slider bar for more.
RA209A; Radiola marque (ID = 238662) Radio
Radiola marque: RA209A [Radio] ID = 238662 500x380
Select picture or schematic to display from thumbnails on the right and click for download.

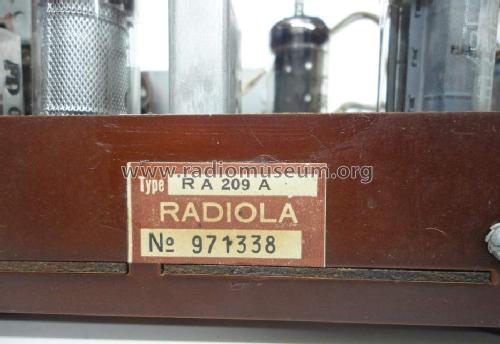

For model RA209A, Radiola (marque)

Country:  France
Manufacturer / Brand:  Radiola (marque)
Brand

SFER
Year: 1960–1964 Category: Broadcast Receiver - or past WW2 Tuner

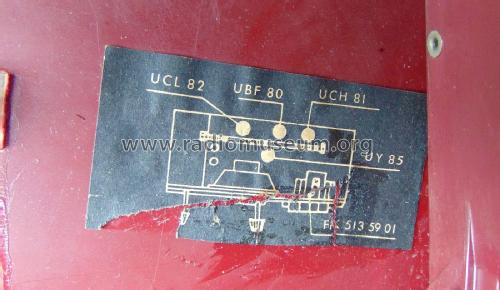

Valves / Tubes 4: UCH81 UBF80 UCL82 UY85
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 124; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out
from Radiomuseum.org Model: RA209A - Radiola marque
Material Modern plastics (no Bakelite or Catalin)

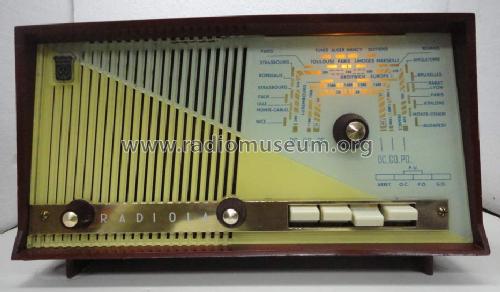

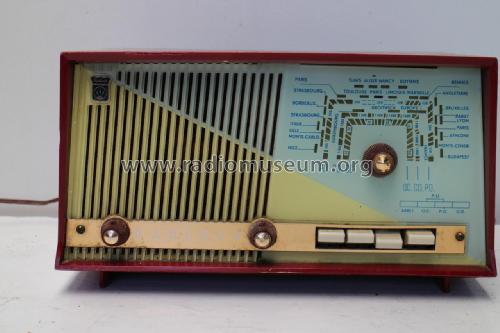

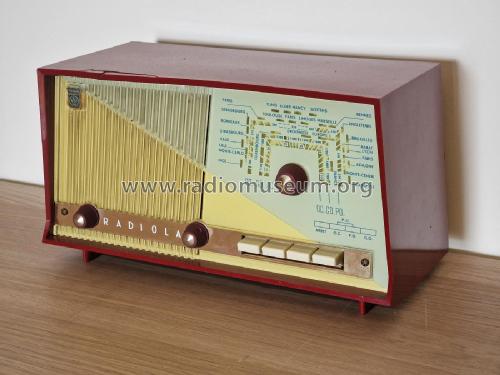

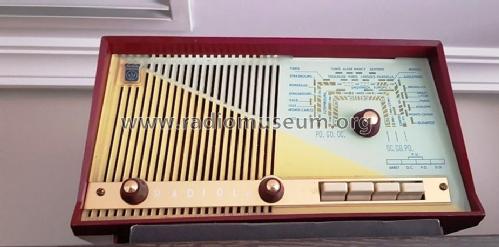

Shape Tablemodel with Push Buttons.
Dimensions (WHD) 290 x 165 x 140 mm / 11.4 x 6.5 x 5.5 inch
Notes

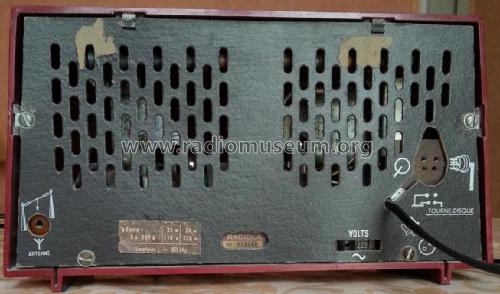

3 gammes d'ondes: GO 1150 à 1950 m, PO 185 à 575 m, OC 25 à 51 m. Réglage de tonalité. Cadre ferroxcube antiparasites à bâtonnet de 23 cm. Antenne plaque pour OC. Clavier 4 touches. Prise pick-up commutée.

Alimentation par auto-transformateur, châssis relie au secteur.

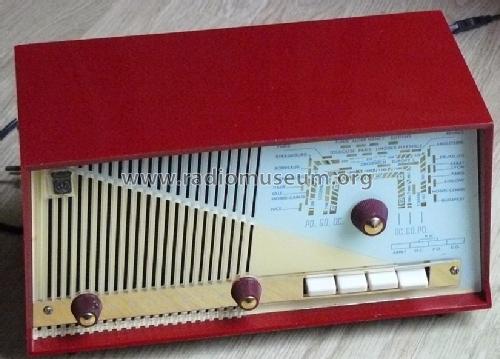

Coffret polystyrène en trois exécutions: bordeaux, ivoire ou anthracite.

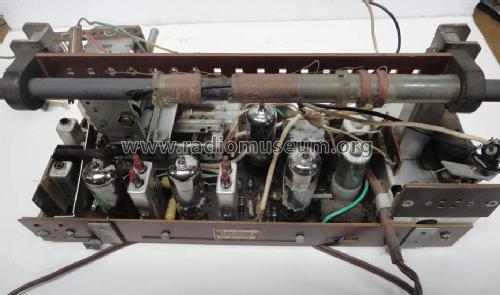

The same chassis as the model Philips B2F90A.

Net weight (2.2 lb = 1 kg) 2.8 kg / 6 lb 2.7 oz (6.167 lb)
Collectors' prices
Mentioned in -- Original prospect or advert (Prospekt: "Radiola 1962" Seite 8)
Literature/Schematics (1) Le grand livre de la TSF (Doctsf Ref 7082 (année 1959))
Literature/Schematics (2) -- Original-techn. papers.

Model page created by John Koster. See "Data change" for further contributors.



All listed radios etc. from Radiola (marque)
Here you find 800 models, 483 with images and 222 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
