B2LN68U /62

B2LN68U /62; Philips Portugal (ID = 530453) Radio B2LN68U /62; Philips Portugal (ID = 530454) Radio
B2LN68U /62; Philips Portugal (ID = 530456) Radio B2LN68U /62; Philips Portugal (ID = 311855) Radio
B2LN68U /62; Philips Portugal (ID = 530455) Radio B2LN68U /62; Philips Portugal (ID = 530457) Radio
B2LN68U /62; Philips Portugal (ID = 530458) Radio B2LN68U /62; Philips Portugal (ID = 801105) Radio
B2LN68U /62; Philips Portugal (ID = 1181226) Radio B2LN68U /62; Philips Portugal (ID = 1181227) Radio
Use red slider bar for more.

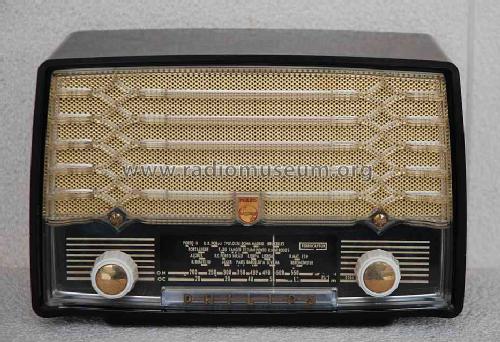

B2LN68U /62; Philips Portugal (ID = 530453) Radio
Philips Portugal: B2LN68U /62 [Radio] ID = 530453 933x640
Select picture or schematic to display from thumbnails on the right and click for download.
For model B2LN68U /62, Philips Portugal

Country:  Portugal
Manufacturer / Brand:  Philips Portugal
Brand

FAPAE
Year: 1956/1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UF41 UBC41 UL41 UY42 or UY41
schematic requested
Main principle Superheterodyne (common)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: B2LN68U /62 - Philips Portugal
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 261 x 175 x 137 mm / 10.3 x 6.9 x 5.4 inch
Price in first year of sale 1'350.00 PTE
Mentioned in - - Manufacturers Literature

Model page created by Mario Coelho. See "Data change" for further contributors.



All listed radios etc. from Philips Portugal
Here you find 72 models, 66 with images and 31 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
