B2X78U /01; Philips; Eindhoven (ID = 32527) Radio
Philips; Eindhoven: B2X78U /01 [Radio] ID = 32527 504x396
Select picture or schematic to display from thumbnails on the right and click for download.
For model B2X78U /01, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1957/1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UCC85 UCH81 UF89 UABC80 UL84 UY85
Main principle Superheterodyne (common); ZF/IF 452/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage AC/DC-set / 110; 127 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: B2X78U /01 - Philips; Eindhoven tubes
Material Bakelite or Plastics (type unknown)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 334 x 205 x 190 mm / 13.1 x 8.1 x 7.5 inch
Notes

Wave ranges:
MW = 517 - 1620 kHz
FM = 87.5 - 108 MHz

Speaker: AD2460M
Dial lamp: 8097D-00

Suitable for operation on 127 V mains. For operation on 110 V, resistance B3 has to be short-circuited.

B2X78U /01 also exists for the American market with Norelco logo on the front.

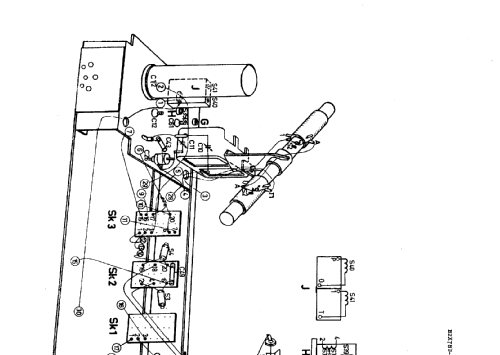

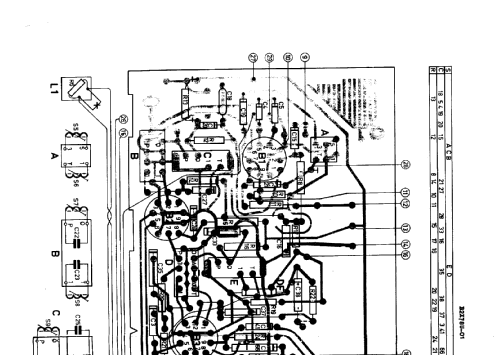

Mentioned in -- Original-techn. papers.

Model page created by Iven Müller. See "Data change" for further contributors.
