For model B2X80U /03, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1958/1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH81 UF89 UBC81 UL84 UY42
Main principle Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 110-127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch
Power out
from Radiomuseum.org Model: B2X80U /03 - Philips; Eindhoven tubes
Material Bakelite case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 315 x 179 x 145 mm / 12.4 x 7 x 5.7 inch
Notes
AM radio with built-in ferroceptor:
  • LW: 150 - 260 kHz.
  • BC: 517 - 1610 kHz.
Loudspeaker AD2500X.
Dial lamp: 8009D-07 (6,3V / 250mA).

This model looks like the B2X80U, but it has a green coloured case.
See also others variations on this model B2X80UB2X80U/01 and B2X80U/04.
Net weight (2.2 lb = 1 kg) 2.7 kg / 5 lb 15.2 oz (5.947 lb)

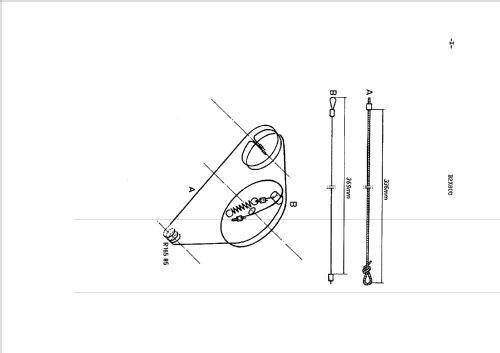

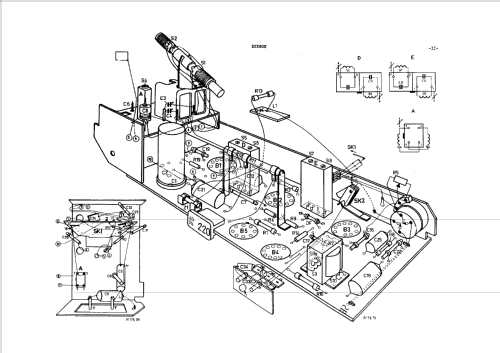

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Jos van den Broek. See "Data change" for further contributors.
