For model B3F60A - BF360A, Philips France; Paris

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1956/1957 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH81 UBF80 UCL82 UY85
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out
from Radiomuseum.org Model: B3F60A - BF360A - Philips France; Paris
Material Moulded (Bakelite or Plastics)

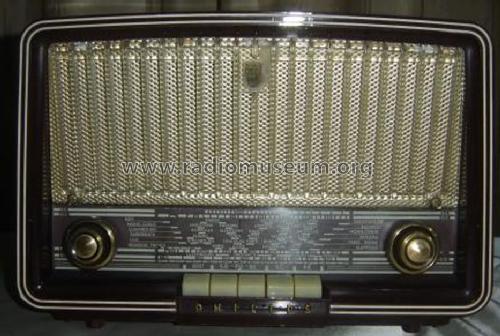

Shape Tablemodel with Push Buttons.
Dimensions (WHD) 330 x 220 x 165 mm / 13 x 8.7 x 6.5 inch
Notes

4 gammes d'ondes: OC de 18 à 51 m, BE (bande étalée) de 47 à 50.5 m, PO de 185 à 572 m et GO de 1100 à 1950 m. Cadre ferrite de 20 cm. Clavier 5 touches éclairé. HP type 13090/24.

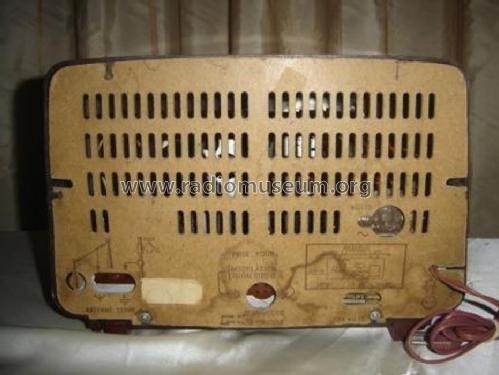

Possibilité d'adjonction d'un adaptateur chalutier FD 000 83 pour la gamme chalutier de 80 à 200 m. Emplacement sur le dos pour Interphone AF7800.

Coffret moulé, bordeaux ou ivoire.

Le type BF360A est seulement mentionné dans les publicités; réellement le modèle est désigné B3F60A.

Net weight (2.2 lb = 1 kg) 5.1 kg / 11 lb 3.7 oz (11.233 lb)
Mentioned in -- Original prospect or advert (Gamme 1957)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Raynal Aufils. See "Data change" for further contributors.
