B3G85U ; Philips Electrical, (ID = 145966) Radio
Philips Electrical,: B3G85U [Radio] ID = 145966 720x418
Select picture or schematic to display from thumbnails on the right and click for download.
For model B3G85U (G85U), Philips Electrical, Lamps, Industrial - Miniwatt; London

Country:  Great Britain (UK)
Manufacturer / Brand:  Philips Electrical, Lamps, Industrial - Miniwatt; London
Year: 1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UCC85 UCH81 UF89 UABC80 UL84 UY85
Main principle Superheterodyne (common); ZF/IF 470/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage AC/DC-set / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 inch = 11.4 cm
Power out
from Radiomuseum.org Model: B3G85U - Philips Electrical, Lamps,
Material Plastics (no bakelite or catalin)
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 13.5 x 7 x 6 inch / 343 x 178 x 152 mm
Notes

An AC/DC mains AM/FM table radio covering MW (187 - 560 metres) and VHF (87.5 - 100 MHz). Uses permeability tuning. Sockets for external AM and FM aerials. Released August 1958 price £14 0s 6d plus purchase tax.

Net weight (2.2 lb = 1 kg) 3.1 kg / 6 lb 13.3 oz (6.828 lb)
Literature/Schematics (1) - - Data from my own collection

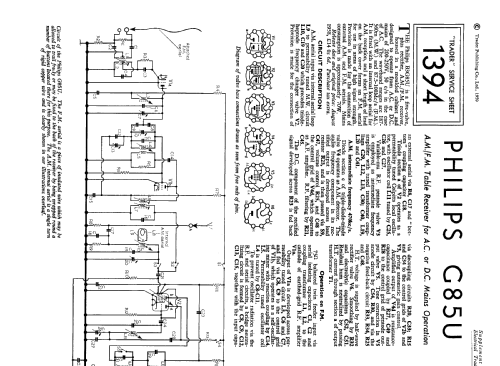

Literature/Schematics (2) Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1394 dated 14 March 1959)

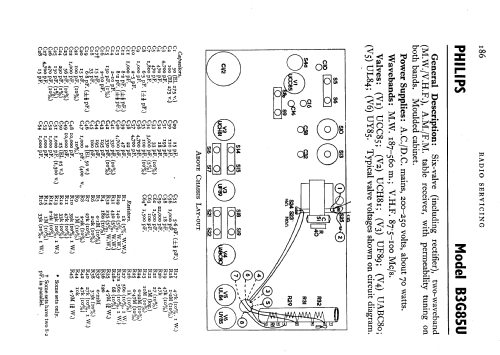

Literature/Schematics (3) Radio And Television Servicing books (R&TVS)

Model page created by William J Blanchflower. See "Data change" for further contributors.
