• Country
• Portugal

• Manufacturer / Brand
• Philips Portugal

• Year
• 1960/1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 72662

• • Brand: FAPAE

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• OC170 OC45 OC45 OC71 OC71 OC72 OC72 OA79 OA85

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Storage and/or dry batteries / 4x1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Power out
• 0.3 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

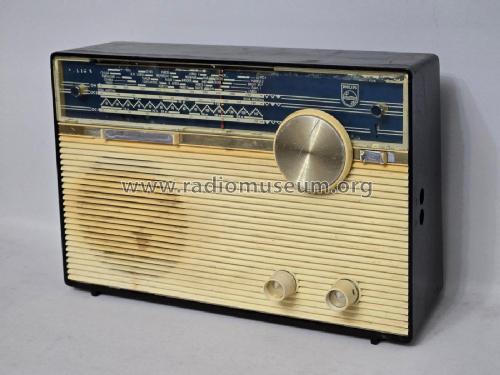

• Model: B3LN06T [/00] - Philips Portugal

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 303 x 202 x 103 mm / 11.9 x 8 x 4.1 inch

• Notes
• 7 Transistors: OC170, 2x OC45, 2x OC71, 2x OC72 - see also Philips in the Netherlands with the same model: B3X06T/00 Colours: Green and black .- Plastic cover in two colours:Brown and Green.

• Net weight (2.2 lb = 1 kg)
• 4 kg / 8 lb 13 oz (8.811 lb)

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
