B3LN36A; Philips Portugal (ID = 308016) Radio

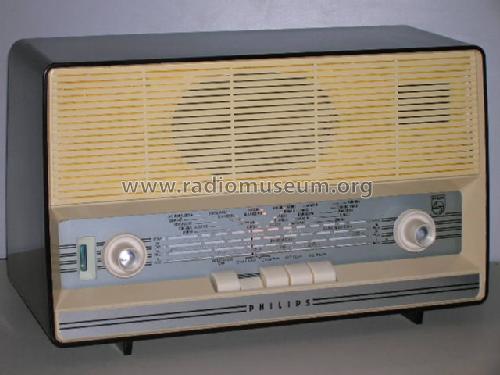

Philips Portugal: B3LN36A [Radio] ID = 308016 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model B3LN36A, Philips Portugal:
Collection of Vitor M. Monteiro Santos

Country:  Portugal
Manufacturer / Brand:  Philips Portugal
Brand

FAPAE
Year: 1964 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH81 EF89 EBC81 EL84 DM71 EZ80
Main principle Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 90; 110; 127; 145; 190; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: B3LN36A - Philips Portugal
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 360 x 221 x 180 mm / 14.2 x 8.7 x 7.1 inch
Notes

3 SW bands. Dial lamp: 8024N/71 (6,5V/0,3A).

Made in 3 colours: cherry, blue, yellow.

Model page created by Mario Coelho. See "Data change" for further contributors.
