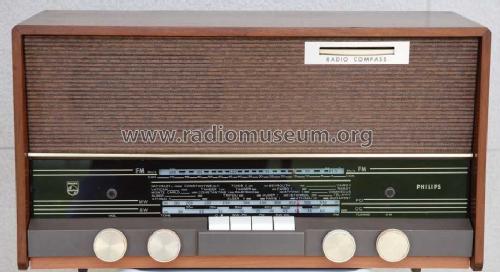

B3X48A; Philips Belgium (ID = 319236) Radio
Philips Belgium: B3X48A [Radio] ID = 319236 933x509
Select picture or schematic to display from thumbnails on the right and click for download.
For model B3X48A, Philips Belgium (Belgien)

Country:  Belgium
Manufacturer / Brand:  Philips Belgium (Belgien)
Year: 1964 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECC85 ECH81 EF85 ECL86 EZ80
Semiconductors (the count is only for transistors) OA85 AA119 AA119
Main principle Super-Heterodyne (Super in general); ZF/IF 452 kHz
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 4 inch = 10.2 cm
Power out 1.8 W (unknown quality)
from Radiomuseum.org Model: B3X48A - Philips Belgium Belgien
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 431 x 238 x 200 mm / 17 x 9.4 x 7.9 inch
Net weight (2.2 lb = 1 kg) 5.1 kg / 11 lb 3.7 oz (11.233 lb)
External source of data Philips Comercial Publisher "Série Juventude"
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Mario Coelho. See "Data change" for further contributors.
