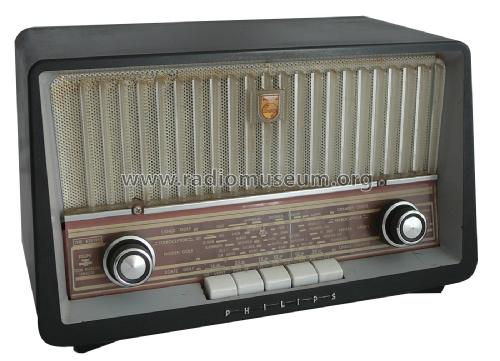

For model B3X70U, Philips Belgium (Belgien)

Country:  Belgium
Manufacturer / Brand:  Philips Belgium (Belgien)
Year: 1957/1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH81 UF89 UBC81 UL84 UY42
Main principle Super-Heterodyne (Super in general); ZF/IF 452 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110-127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: B3X70U - Philips Belgium Belgien

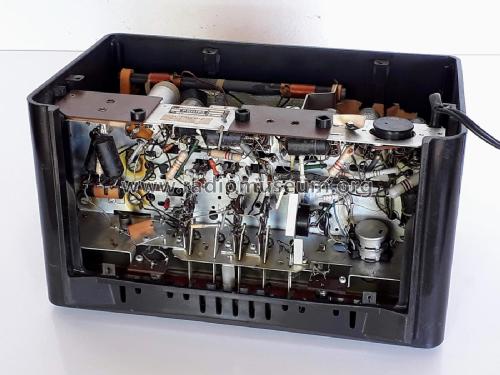

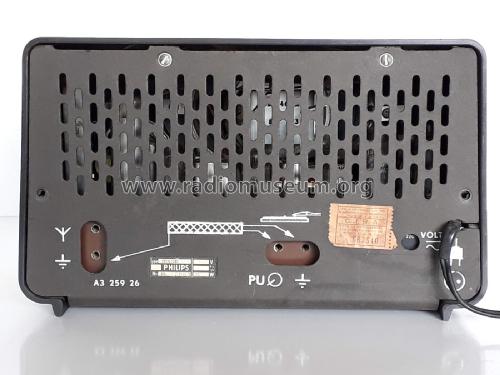

Material Bakelite case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 329 x 176 x 200 mm / 13 x 6.9 x 7.9 inch
Notes
AM radio with built-in ferroceptor:
  • LW: 150 - 265 kHz.
  • BC: 517 - 1620 kHz.
  • SW: 5,95 - 18,1 MHz.
Loudspeaker AD3460X.
Dial lamp: 8089D-00 (12V / 100mA).
Net weight (2.2 lb = 1 kg) 3.6 kg / 7 lb 14.9 oz (7.93 lb)
Collectors' prices

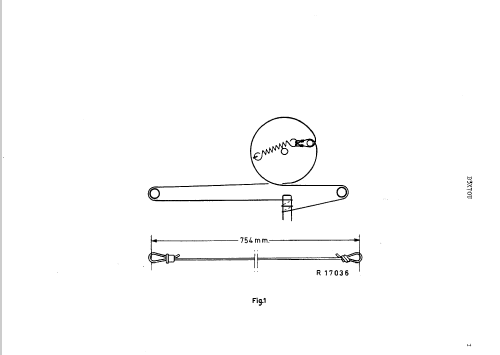

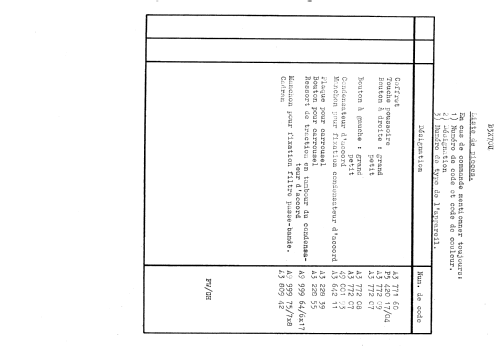

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Iven Müller. See "Data change" for further contributors.
