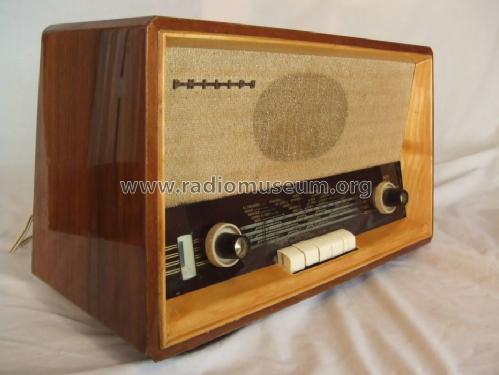

B4LN36A; Philips Portugal (ID = 1542349) Radio B4LN36A; Philips Portugal (ID = 1542350) Radio
B4LN36A; Philips Portugal (ID = 1542351) Radio B4LN36A; Philips Portugal (ID = 1542352) Radio

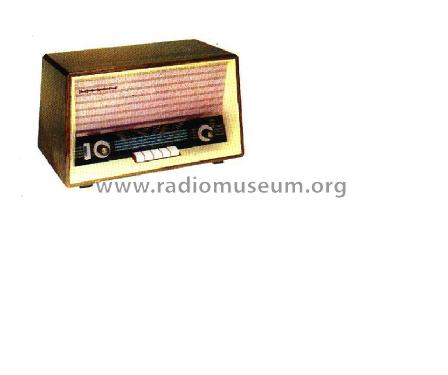

B4LN36A; Philips Portugal (ID = 120796) Radio B4LN36A; Philips Portugal (ID = 1542357) Radio
B4LN36A; Philips Portugal (ID = 1542353) Radio B4LN36A; Philips Portugal (ID = 1542356) Radio
B4LN36A; Philips Portugal (ID = 1542354) Radio B4LN36A; Philips Portugal (ID = 1542355) Radio
Use red slider bar for more.

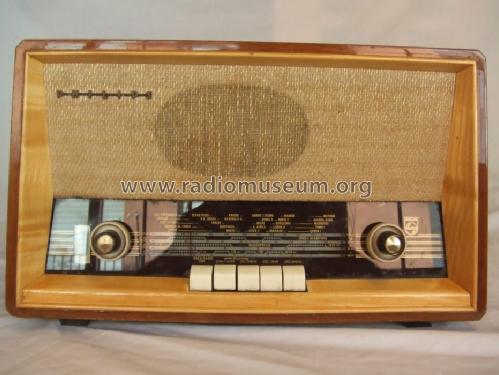

B4LN36A; Philips Portugal (ID = 1542349) Radio
Philips Portugal: B4LN36A [Radio] ID = 1542349 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model B4LN36A, Philips Portugal

Country:  Portugal
Manufacturer / Brand:  Philips Portugal
Brand

FAPAE
Year: 1964 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH81 EF89 EBC81 EL84 DM71 EZ80
Main principle Super-Heterodyne (Super in general); ZF/IF 452 kHz
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 90-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: B4LN36A - Philips Portugal
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 415 x 245 x 195 mm / 16.3 x 9.6 x 7.7 inch
Price in first year of sale 2'395.00 Esc.
External source of data Philips-portugal Comercial Catalogue

Model page created by Mario Coelho. See "Data change" for further contributors.



All listed radios etc. from Philips Portugal
Here you find 70 models, 64 with images and 30 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
