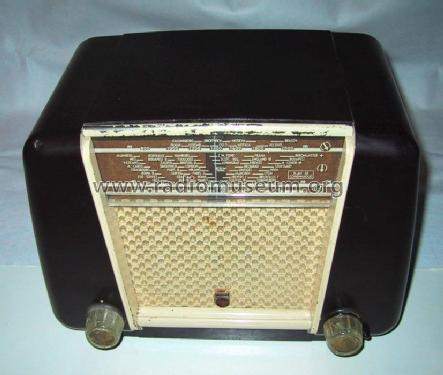

BCH300U; Philips - Schweiz (ID = 30601) Radio BCH300U; Philips - Schweiz (ID = 30602) Radio
BCH300U; Philips - Schweiz (ID = 30603) Radio
Use red slider bar for more.
BCH300U; Philips - Schweiz (ID = 2328932) Radio
Philips - Schweiz: BCH300U [Radio] ID = 2328932 1400x969
Select picture or schematic to display from thumbnails on the right and click for download.
For model BCH300U, Philips - Schweiz

Country:  Switzerland
Manufacturer / Brand:  Philips - Schweiz
Year: 1950–1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UAF42 UBC41 UL41 UY41
Main principle Superheterodyne (common); ZF/IF 452 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage AC/DC-set / 110/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out
from Radiomuseum.org Model: BCH300U - Philips - Schweiz
Material Bakelite case
Dimensions (WHD) 270 x 200 x 160 mm / 10.6 x 7.9 x 6.3 inch
Notes

CH-Fertigung

3 Wave Band:
 - LW: 800-2000m
 - MW:180-580m
 - SW:24.5-33,5m.

Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Price in first year of sale 260.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
