BDK280U

BDK280U; Philips Radio A/S; K (ID = 2326855) Radio BDK280U; Philips Radio A/S; K (ID = 2326856) Radio
BDK280U; Philips Radio A/S; K (ID = 2326857) Radio
Use red slider bar for more.

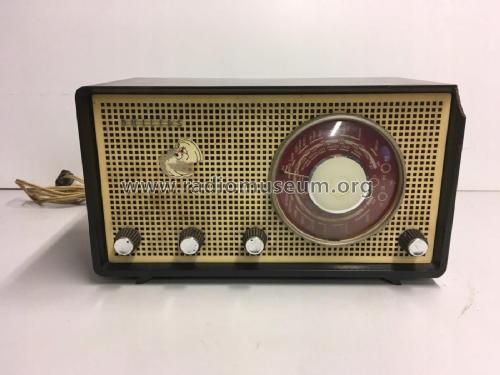

BDK280U; Philips Radio A/S; K (ID = 2326855) Radio
Philips Radio A/S; K: BDK280U [Radio] ID = 2326855 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model BDK280U, Philips Radio A/S; København:
Image taken from polish online auction portal .allegro.pl. Auction number: 7624042520

Country:  Denmark
Manufacturer / Brand:  Philips Radio A/S; København
Year: 1958 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH81 UF89 UBC81 UL84 UY42
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 110-127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: BDK280U - Philips Radio A/S; København
Material Bakelite case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 312 x 177 x 139 mm / 12.3 x 7 x 5.5 inch
Notes

See also the similar Dutch model Philips B2X80U.

Model page created by Tomasz Szczesniak. See "Data change" for further contributors.
