Beethoven 02RH805 (RH805)

Beethoven 02RH805 ; Philips Australia (ID = 2652012) Radio

Beethoven 02RH805 ; Philips Australia (ID = 2652013) Radio

Beethoven 02RH805 ; Philips Australia (ID = 2652015) Radio
Beethoven 02RH805 ; Philips Australia (ID = 2652037) Radio Beethoven 02RH805 ; Philips Australia (ID = 2652038) Radio
Beethoven 02RH805 ; Philips Australia (ID = 2652039) Radio Beethoven 02RH805 ; Philips Australia (ID = 2652040) Radio
Beethoven 02RH805 ; Philips Australia (ID = 2652041) Radio Beethoven 02RH805 ; Philips Australia (ID = 2652042) Radio
Beethoven 02RH805 ; Philips Australia (ID = 2652044) Radio Beethoven 02RH805 ; Philips Australia (ID = 2652045) Radio
Beethoven 02RH805 ; Philips Australia (ID = 2118823) Radio
Use red slider bar for more.
Beethoven 02RH805 ; Philips Australia (ID = 2652037) Radio
Philips Australia: Beethoven 02RH805 [Radio] ID = 2652037 1400x1090
Select picture or schematic to display from thumbnails on the right and click for download.
For model Beethoven 02RH805 (RH805), Philips Australia:
Photo from Thomas Lum.

Country:  Australia
Manufacturer / Brand:  Philips Australia
Year: 1971 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 27: BF194 BF195 BF194 BF195 BC149 BC148 BC149 BC149 BC148 BC157 OC9676 BC148 OC9736 OC9746 BDY20 BDY20 BC149 BC148 BC149 BC149 BC148 BC157 OC9676 BC148 OC9736 OC9746 BDY20 BDY20 BC107 AA119 AA119 BZY88 BY126 BY126 BY126 BY126
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast plus more than 2 Short Wave bands.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 240-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Beethoven 02RH805 - Philips Australia
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 30.625 x 30 x 15 inch / 778 x 762 x 381 mm
Notes

Speaker dimensions: 15" x 30" x 15".

The powerful centre module of the RH805 is available as a separate unit. See Model RH804

Record player Philips type GC008.

Price in first year of sale 589.00 AUS $
Literature/Schematics (1) - - Manufacturers Literature (Philips Service Manual for Models 02RH804 & RH805.)
Literature/Schematics (2) J.R. Publications Transistor Radio Service Handbook (Group G8, 1971/72, Page P1-37)

Model page created by Martin Kent. See "Data change" for further contributors.



All listed radios etc. from Philips Australia
Here you find 839 models, 562 with images and 350 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.





Forum contributions about this model
Philips Australia: Beethoven 02RH805
Threads: 1 | Posts: 1
Hits: 199     Replies: 0

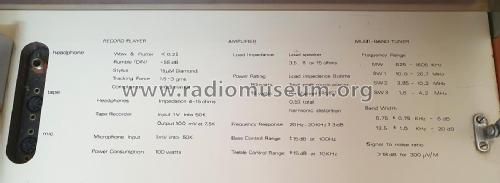

philips: SPECIFICATIONS
Gary Cowans
25.May.21
  1

SPECIFICATIONS

Record Player:

Wow & Flutter:   <0.2%
Rumble (DIN):   -55 dB
Stylus:               15 uM Diamond
Compliance:       >6.5 mm/N

Headphones
Impedance:        4- 15 Ω

Tape Recorder
Input:                    1 V into 50 k Ω
Input:                    100 mV at 7.5 kΩ
Microphone
Input:                    1 mV into 50 kΩ

Power Consumption
                             100 watts

Amplifier
Load Impedance
                             Loudspeaker:    3.5, 8 or 15 Ω
 Power Rating 8 Ω
                             90 watts Total peak music
                             18 watts per channel (RMS) 0.5% THD
Freq. Resp.:         20 Hz – 20 kHz ±3 dB
Bass control:         ±15 dB at 100 Hz
Treble Control:      ±15 dB at 10 kHz

Multi-Band Tuner
Freq. Range
MW:                      525-1605 kHz
SW1:                    10.0 – 26.7 MHz
SW2:                     3.85 – 10.2 MHz
SW3:                     1.6 – 4.2 MHz
Bandwidth
-6 dB:                    6.75 ±0.75 KHz
-20 dB:                  12.5 ±1.0 KHz

Signal to noise ratio
                                >18 dB for 300 uV/M


Philips Australia: Beethoven 02RH805
