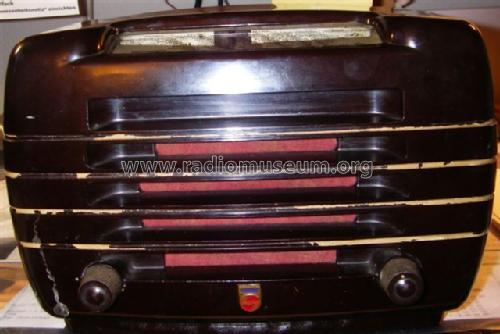

BF183U /03; Philips France; (ID = 542821) Radio
Philips France;: BF183U /03 [Radio] ID = 542821 640x428
Select picture or schematic to display from thumbnails on the right and click for download.
For model BF183U /03, Philips France; Paris

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH41 UAF42 UBC41 UL41 UY41 or UY42
Main principle Super-Heterodyne (Super in general); ZF/IF 452 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details

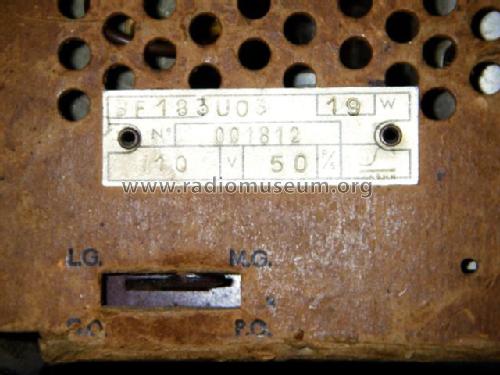

Power type and voltage AC/DC-set / 110 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out
from Radiomuseum.org Model: BF183U /03 - Philips France; Paris
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 245 x 165 x 150 mm / 9.6 x 6.5 x 5.9 inch
Notes

Dial lamp 7121D (6V/0,05A). Chassis same as Radiola RA81U01.

Net weight (2.2 lb = 1 kg) 2.4 kg / 5 lb 4.6 oz (5.286 lb)
Collectors' prices

Model page created by Aglef Tröger. See "Data change" for further contributors.



All listed radios etc. from Philips France; Paris
Here you find 544 models, 482 with images and 297 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Philips France;: BF183U /03
Threads: 1 | Posts: 1
Hits: 1655     Replies: 0
philips: BF183U03;
Aglef Tröger
04.Jan.09
  1

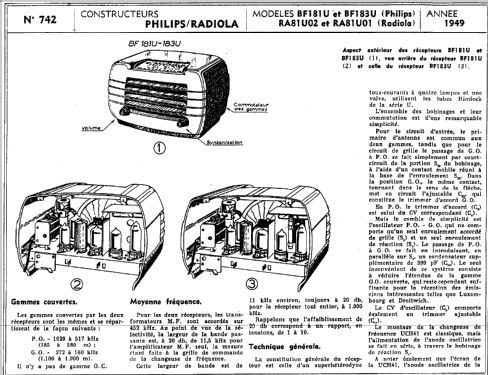

Im Modell BF183U ist gelegentlich auch eine UY42, die speziell für 110V-Geräte eingesetzt wird, verwendet worden. Dank Mitglied Werner Schachtler, der mir mitteilte, dass nach "Grand livre de la tsf", 2007, bei diesem Gerät die Röhren UY41/UY42 beide Dioden alternativ eingesetzt werden. Zu beachten wären noch die Ausführungen zum Gerät im Absatz "Particularités du récepteur BF183U", hinterlegt in den weiteren Schaltungsunterlagen.
