BF183U /00

BF183U /00; Philips France; (ID = 1679989) Radio

BF183U /00; Philips France; (ID = 1679990) Radio

BF183U /00; Philips France; (ID = 1679992) Radio

BF183U /00; Philips France; (ID = 1679994) Radio

BF183U /00; Philips France; (ID = 1679995) Radio
Use red slider bar for more.
BF183U /00; Philips France; (ID = 1679989) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1948/1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH41 UAF42 UBC41 UL41 UY41
Conflicting model year with tubedata.
The model date contradicts tube dates. [ UBC41 (1949)]
Main principle Super-Heterodyne (Super in general); ZF/IF 452 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 127 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out
from Radiomuseum.org Model: BF183U /00 - Philips France; Paris
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 250 x 170 x 150 mm / 9.8 x 6.7 x 5.9 inch
Notes

2 gammes d'ondes:

  • PO (MW) 185 à 580 m (1620 - 517 kHz)
  • GO (LW) 1100 à 1900 m (272 - 160 kHz)

Lampe cadran 7121D (6 V / 0,05 A).

Le catalogue Philips 1949 annonce uniquement les modèles BX183U et BX181U.

Net weight (2.2 lb = 1 kg) 2.5 kg / 5 lb 8.1 oz (5.507 lb)
Collectors' prices

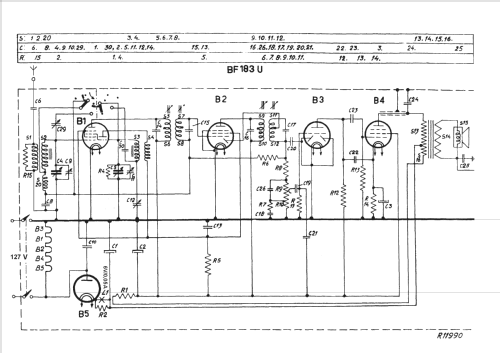

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Antonio Martins-Pais. See "Data change" for further contributors.
