Cassiopée BF213U bakélite
|
|
||||
| Year: 1951–1953 | Category: Broadcast Receiver - or past WW2 Tuner | ||||

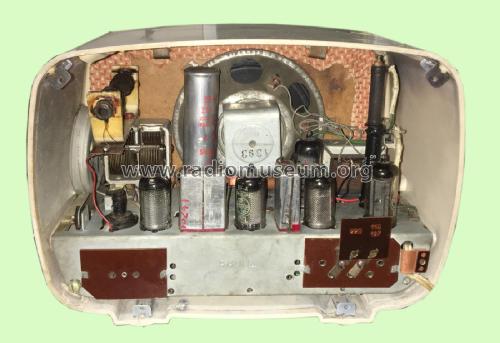

| Valves / Tubes | 5: UCH42 UF41 UBC41 UY41 UL41 |
|---|
| Main principle | Superheterodyne (common); ZF/IF 455 kHz |
|---|---|
| Tuned circuits | 6 AM circuit(s) |
| Wave bands | Broadcast, Long Wave and Short Wave. |
| Details | |
| Power type and voltage | AC/DC-set / 110-115; 220 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch |
| Power out | |
| from Radiomuseum.org | Model: Cassiopée BF213U [bakélite] - Philips France; Paris |

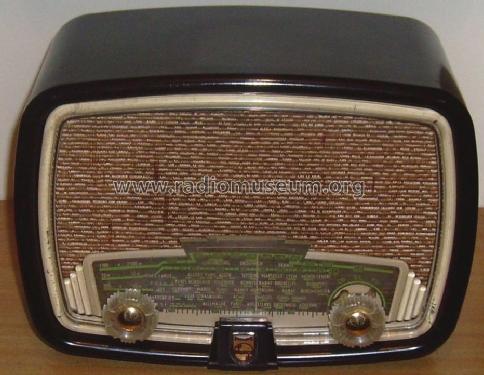

| Material | Bakelite case |
| Shape | Tablemodel without push buttons, Mantel/Midget/Compact up to 14 |
| Dimensions (WHD) | 262 x 188 x 160 mm / 10.3 x 7.4 x 6.3 inch |
| Notes | 3 gammes d'ondes : OC de 16 à 51 m, PO de 185.2 à 570 m, GO de 1150 à 1950 m. Cadre ferrite incorporé. Lampe cadran 8097D/00 (19 V / 0.1 A). Coffret en bakélite marbrée. Modèle dérivé du BF211U (sans cadre). Dans le dépliant de la gamme 51-52, le modèle est décrit comme fonctionnant sur secteur 110 à 127 et 220 volts, et avec dimensions de 265 x 170 x 120 mm. La documentation technique Philips spécifie 7 circuits accordés, ce qui est erroné. |
| Net weight (2.2 lb = 1 kg) | 2.5 kg / 5 lb 8.1 oz (5.507 lb) |
| Price in first year of sale | 19'850.00 FRF |
| Mentioned in | - - Manufacturers Literature (Tarif 01.03.1953) |
| Literature/Schematics (1) | -- Original-techn. papers. |
| Literature/Schematics (2) | -- Original prospect or advert (Série des Étoiles 51-52) |
Model page created by Franz Scharner. See "Data change" for further contributors.
