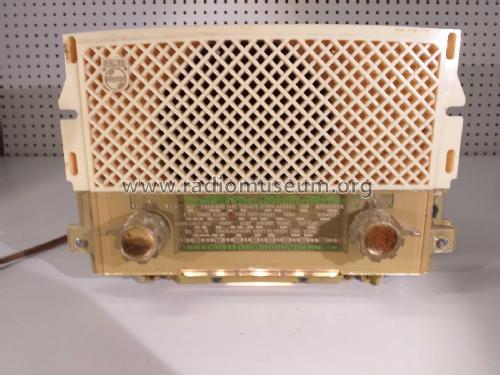

Aviso BF223U; Philips France; (ID = 1874209) Radio
Philips France;: Aviso BF223U [Radio] ID = 1874209 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Aviso BF223U, Philips France; Paris:
BF223U

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UF41 UBC41 UL41 UY41
Main principle Super-Heterodyne (Super in general); ZF/IF 455/468 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110-127; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 cm = 4.7 inch
Power out
from Radiomuseum.org Model: Aviso BF223U - Philips France; Paris
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 290 x 185 x 150 mm / 11.4 x 7.3 x 5.9 inch
Notes

3 gammes d'ondes: OC 18,75 à 5,82 MHz, PO 1620 à 522 kHz, GO 272,3 à 154 kHz. Prise pick-up. Pour tous courants, 50 et 25 périodes.

Adaption à secteur 127 V avec résistance supplémentaire. Consommation 31 / 44 watts.

Équivalent au Radiola RA262U.

Tonalité: 2 positions. Prise pick-up commutée. Prises antenne et terre. Coffret matière plastique ivoire ou bordeaux (Mallete fibrine sur demande).

Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Price in first year of sale 21'000.00 FFrs
Source of data -- Original prospect or advert
Literature/Schematics (2) Le grand livre de la TSF (Doctsf Ref 4814)
Literature/Schematics (3) Schémathèque Toute la Radio (STR) (No. 800)

Model page created by Lutwin Berndt † 5.10.14. See "Data change" for further contributors.
