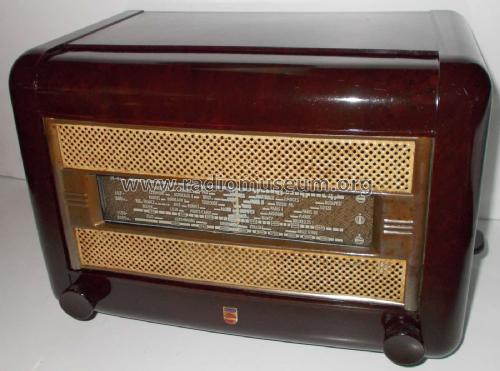

BF393A; Philips France; (ID = 2436472) Radio
Philips France;: BF393A [Radio] ID = 2436472 1400x1040
Select picture or schematic to display from thumbnails on the right and click for download.
For model BF393A, Philips France; Paris

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1949/1950 Category: Broadcast Receiver - or past WW2 Tuner

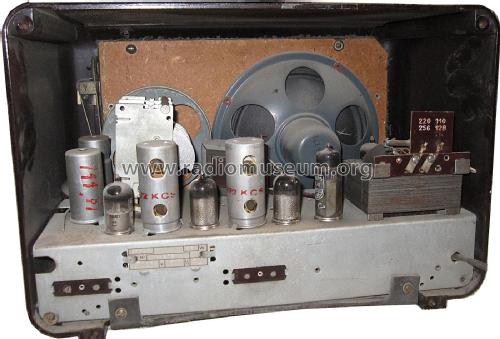

Valves / Tubes 5: UCH41 UAF41 UAF41 UL41 UY41
Main principle Super-Heterodyne (Super in general); ZF/IF 472 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-128; 220-256 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: BF393A - Philips France; Paris

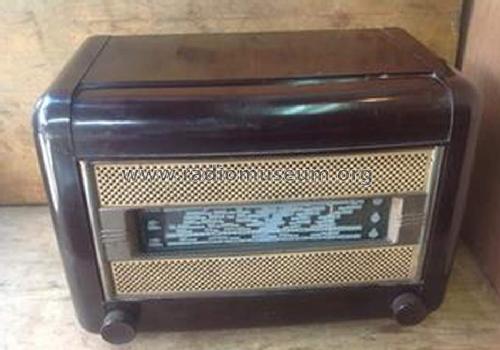

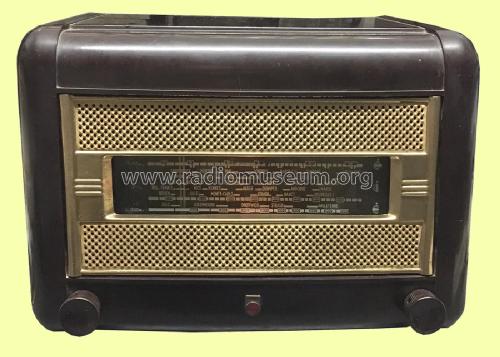

Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 345 x 227 x 202 mm / 13.6 x 8.9 x 8 inch
Notes

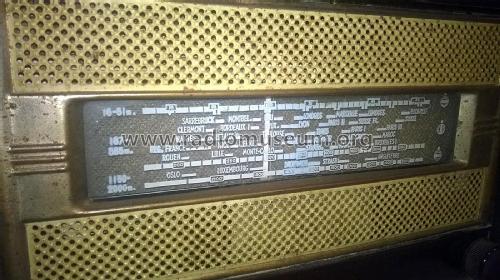

3 gammes d'ondes : OC de 15 à 51 m, PO de 187 à 578 m, et GO de 1150 à 2000 m. CAV agissant sur 3 lampes. Haut-parleur Philips 9738 ou Audax (FK 505 77). Prise pick-up.

Coffret bakélite, grille décorative.

Alimentation sur secteur 50 périodes, version pour 25 périodes voir  BF393A /25.

La documentation technique mentionne lampe ECH41 au lieu de UCH41, qui est une erreur.

Net weight (2.2 lb = 1 kg) 5.4 kg / 11 lb 14.3 oz (11.894 lb)
Price in first year of sale 15'990.00 FRF
Collectors' prices

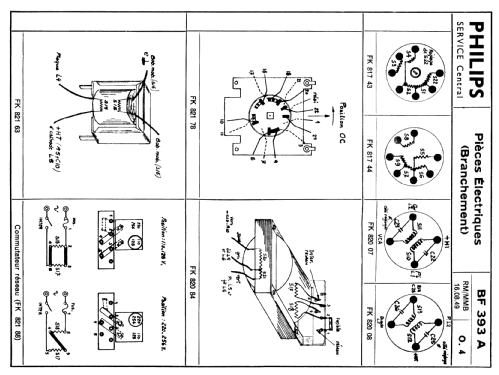

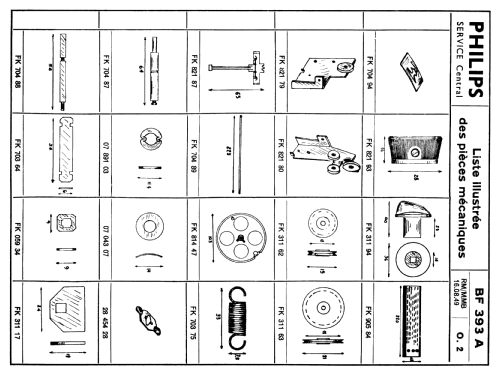

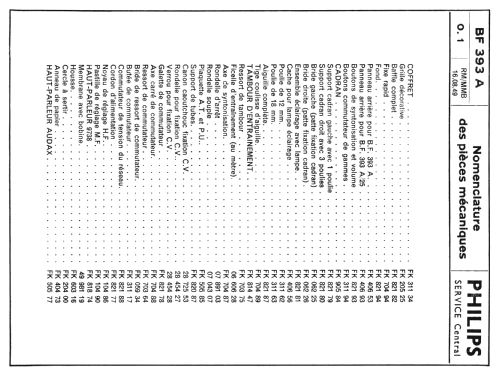

Mentioned in -- Original-techn. papers.
Literature/Schematics (1) -- Original prospect or advert

Model page created by John Koster. See "Data change" for further contributors.
