BF394A

BF394A; Philips France; (ID = 1624280) Radio
BF394A; Philips France; (ID = 2319733) Radio BF394A; Philips France; (ID = 146500) Radio

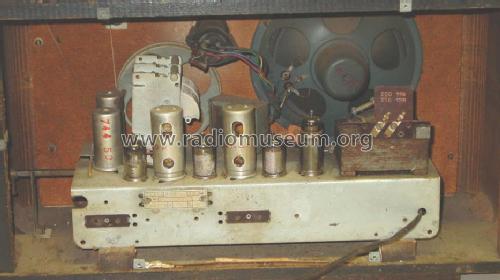

BF394A; Philips France; (ID = 146501) Radio BF394A; Philips France; (ID = 146502) Radio
BF394A; Philips France; (ID = 1088885) Radio
Use red slider bar for more.

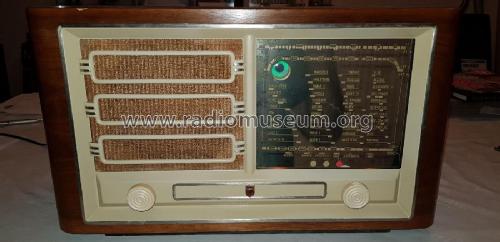

BF394A; Philips France; (ID = 2319733) Radio
Philips France;: BF394A [Radio] ID = 2319733 1400x680
Select picture or schematic to display from thumbnails on the right and click for download.
For model BF394A, Philips France; Paris

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UCH41 UAF41 UAF41 UL41 UM4 UY41
Main principle Super-Heterodyne (Super in general); ZF/IF 472 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 128; 220; 256 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: BF394A - Philips France; Paris
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 470 x 290 x 200 mm / 18.5 x 11.4 x 7.9 inch
Net weight (2.2 lb = 1 kg) 6.3 kg / 13 lb 14 oz (13.877 lb)
Price in first year of sale 19'900.00 FRF
Source of data - - Data from my own collection

Model page created by Peter Böhm. See "Data change" for further contributors.
