Philetta BF102A /01 /02; Philips France; (ID = 2417278) Radio
Philips France;: Philetta BF102A /01 /02 [Radio] ID = 2417278 1400x934
Select picture or schematic to display from thumbnails on the right and click for download.
For model Philetta BF102A /01 /02, Philips France; Paris

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH81 UAF42 UL41 UY42 or UY41
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 117; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Philetta BF102A /01 /02 - Philips France; Paris
Material Moulded (Bakelite or Plastics)
Shape Tablemodel without bush buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 230 x 140 x 110 mm / 9.1 x 5.5 x 4.3 inch
Notes

Coffret moulé en deux parties et disponible en deux exécutions:

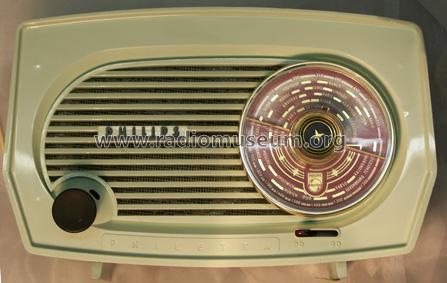

  • /01 couleurs ivoire, vert ou rouge (exécution luxe)

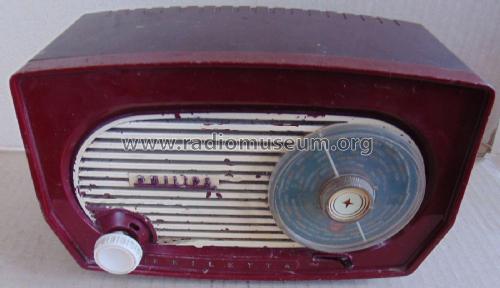

  • /02 couleur bordeaux (exécution standard).

Cette radio était aussi disponible en version intégrée dans un frigo BF102F.

La triode du tube UCH81 ne sert pas comme oscillateur mais comme premier étage BF.

Attention: autotransformateur: châssis relié au secteur !



Net weight (2.2 lb = 1 kg) 2.2 kg / 4 lb 13.5 oz (4.846 lb)
Price in first year of sale 11'950.00 F
Source of data Philips Radio

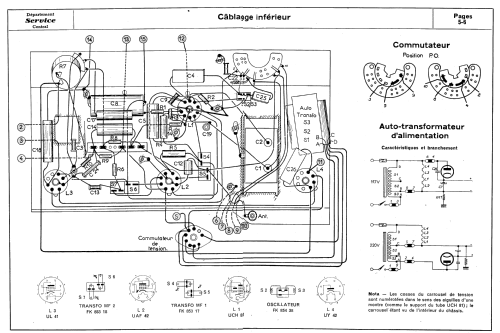

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Patrice Zeissloff. See "Data change" for further contributors.
