Brick BF421A

Brick BF421A; Philips France; (ID = 358841) Radio
Brick BF421A; Philips France; (ID = 731539) Radio Brick BF421A; Philips France; (ID = 731540) Radio
Brick BF421A; Philips France; (ID = 731541) Radio Brick BF421A; Philips France; (ID = 377275) Radio
Brick BF421A; Philips France; (ID = 561478) Radio Brick BF421A; Philips France; (ID = 731542) Radio
Brick BF421A; Philips France; (ID = 1222292) Radio Brick BF421A; Philips France; (ID = 1222293) Radio
Brick BF421A; Philips France; (ID = 1222294) Radio Brick BF421A; Philips France; (ID = 1483882) Radio
Use red slider bar for more.

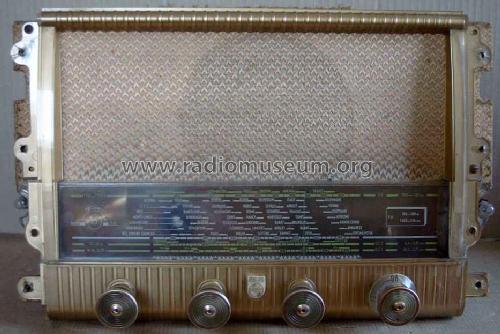

Brick BF421A; Philips France; (ID = 731539) Radio
Philips France;: Brick BF421A [Radio] ID = 731539 640x454
Select picture or schematic to display from thumbnails on the right and click for download.
For model Brick BF421A, Philips France; Paris:
Source: ebay Espana #110489843093

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UCH42 UAF42 UBC41 UL41 UM34 UY41
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 19 cm = 7.5 inch
Power out
from Radiomuseum.org Model: Brick BF421A - Philips France; Paris
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 435 x 296 x 200 mm / 17.1 x 11.7 x 7.9 inch
Notes

4 gammes d'ondes: OC1 18,75 à 5,7 MHz, OC2 6,38 à 5,88 MHz, PO 1620 à 518 kHz, GO 272,1 à 154 kHz. Bande étalée sur 49 m. Controle de tonalité progressif. Prises pick-up et HP supplémentaire.

Équivalent au Radiola RA452A.

Coffret bakélite avec décor en matière translucide dorée.

Net weight (2.2 lb = 1 kg) 6.6 kg / 14 lb 8.6 oz (14.537 lb)
Price in first year of sale 31'800.00 FRF
Collectors' prices
Source of data -- Original prospect or advert
Mentioned in Le grand livre de la TSF (Doctsf Ref 2109)
Literature/Schematics (1) -- Schematic

Model page created by Getulio Jimenez-Gomez. See "Data change" for further contributors.



All listed radios etc. from Philips France; Paris
Here you find 544 models, 482 with images and 297 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Philips France;: Brick BF421A
Threads: 1 | Posts: 2
Hits: 1315     Replies: 1
philips: BF421A; Brick
Manfred Rathgeb
08.Aug.13
  1

Mein Modell hat eine andere Lautsprechertype, auch sind die in der Bemerkung angegebenen Frequenzbereiche mit denen auf der Skala nicht ganz identisch, siehe zu beidem meine Bilder.

Wolfgang Bauer
09.Aug.13
  2

Sg. Herr Rathgeb,

bei Ihrem Gerät dürfte der Lautsprecher nicht original sein.
Sie sehen noch die Gewindestifte neben dem Lautsprecher, mit denen der Originallautsprecher an der Schallwand befestigt war.

MfG. WB.
