BK228U

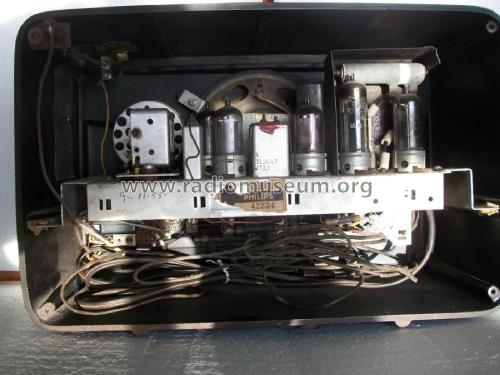

BK228U; Philips del Uruguay (ID = 2531696) Radio BK228U; Philips del Uruguay (ID = 2531697) Radio
Use red slider bar for more.
BK228U; Philips del Uruguay (ID = 2531696) Radio
Philips del Uruguay: BK228U [Radio] ID = 2531696 1400x1044
Select picture or schematic to display from thumbnails on the right and click for download.
For model BK228U, Philips del Uruguay S.A., Montevideo:
Cliente: Raúl Borga.

Country:  Uruguay
Manufacturer / Brand:  Philips del Uruguay S.A., Montevideo
Year: 1952 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UF41 UBC41 UL41 UY41
schematic requested
Main principle Superheterodyne (common)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: BK228U - Philips del Uruguay S.A.,
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 320 x 205 x 136 mm / 12.6 x 8.1 x 5.4 inch

Model page created by Carlos A. Pieroni-García. See "Data change" for further contributors.
