BR-116-U/01
Philips do Brasil S.A.
- Country
- Brazil
- Manufacturer / Brand
- Philips do Brasil S.A.
- Year
- 1956
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 139206
On my bench for repair
On my bench for repair
From the service manual

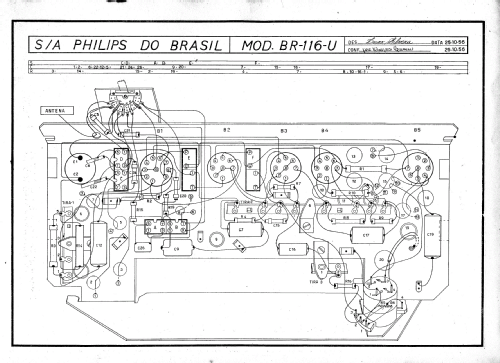

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 110- 127 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Power out
- 2.5 W (unknown quality)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: BR-116-U/01 - Philips do Brasil S.A.
- Notes
- The is also a variant model (BR-116-U/24) for 220 V mains.
