BR-346-V or Mullard 5665V

Philips do Brasil S.A.

Data
Forum
Pictures
Collections

  • Year
  • 1956
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 139635

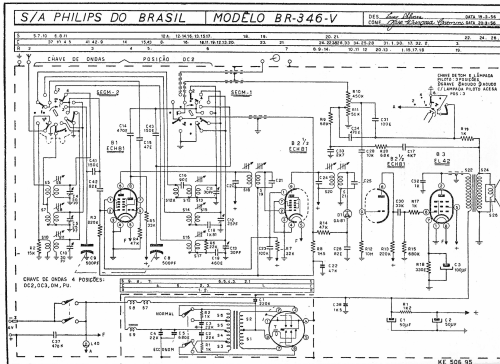

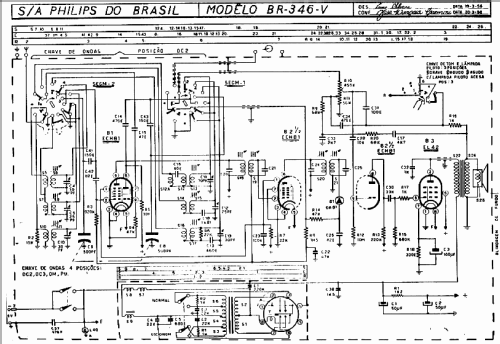

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: BR-346-V or Mullard 5665V - Philips do Brasil S.A.
  • Shape
  • Tablemodel, with any shape - general.
  • Notes

  • This set employs a vibrator power supply unit. (the "V" suffix stands for vibrator) The second ECH81 performs the IF penthode amplifier and the audio first stage functions. Diode OA81 is the detector.

  • Source of data
  • - - Manufacturers Literature
  • Author
  • Model page created by Meyer Rochwerger. See "Data change" for further contributors.
