• Year
  • 1994 ?
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 320621

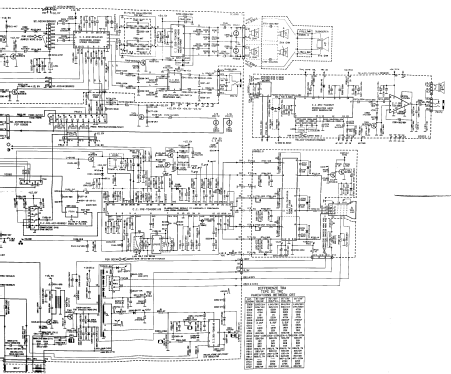

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 220; 240 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: BS849 - Philips, Svenska AB, Stockholm
  • Shape
  • Tablemodel, low profile (big size).
  • Notes
  • TV Color.
