BSA205U

BSA205U; Philips Chilena S.A. (ID = 2074639) Radio BSA205U; Philips Chilena S.A. (ID = 2074642) Radio
BSA205U; Philips Chilena S.A. (ID = 2074644) Radio BSA205U; Philips Chilena S.A. (ID = 2074645) Radio
Use red slider bar for more.
BSA205U; Philips Chilena S.A. (ID = 2074639) Radio
Philips Chilena S.A.: BSA205U [Radio] ID = 2074639 1400x988
Select picture or schematic to display from thumbnails on the right and click for download.
For model BSA205U, Philips Chilena S.A.:

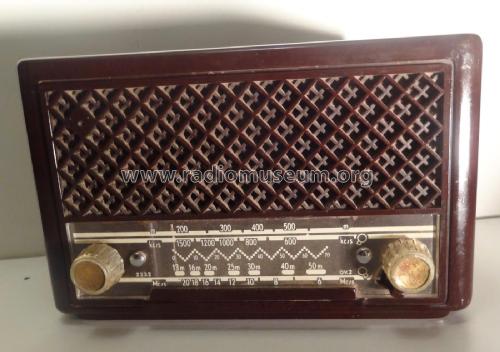

Frente

Country:  Chile
Manufacturer / Brand:  Philips Chilena S.A.
Year: 1951 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UF41 UBC41 UL41 UY41
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out 4.5 W (unknown quality)
from Radiomuseum.org Model: BSA205U - Philips Chilena S.A.
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 270 x 170 x 125 mm / 10.6 x 6.7 x 4.9 inch
Notes

Compare with similar model BX205U.

Model page created by Maximiliano Herrada. See "Data change" for further contributors.
