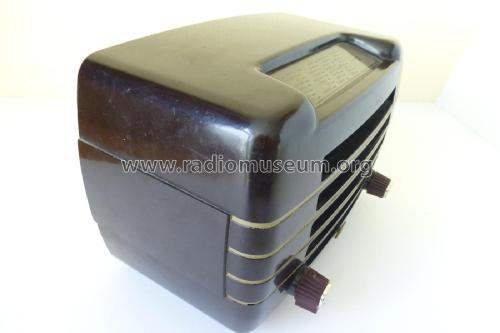

BX180U /00 /03 /04

BX180U /00 /03 /04; Philips; Eindhoven (ID = 41706) Radio

BX180U /00 /03 /04; Philips; Eindhoven (ID = 41707) Radio

BX180U /00 /03 /04; Philips; Eindhoven (ID = 41708) Radio

BX180U /00 /03 /04; Philips; Eindhoven (ID = 1620343) Radio

BX180U /00 /03 /04; Philips; Eindhoven (ID = 1629863) Radio

BX180U /00 /03 /04; Philips; Eindhoven (ID = 1629864) Radio

BX180U /00 /03 /04; Philips; Eindhoven (ID = 1629865) Radio

BX180U /00 /03 /04; Philips; Eindhoven (ID = 1629866) Radio

BX180U /00 /03 /04; Philips; Eindhoven (ID = 1629867) Radio

BX180U /00 /03 /04; Philips; Eindhoven (ID = 1629868) Radio

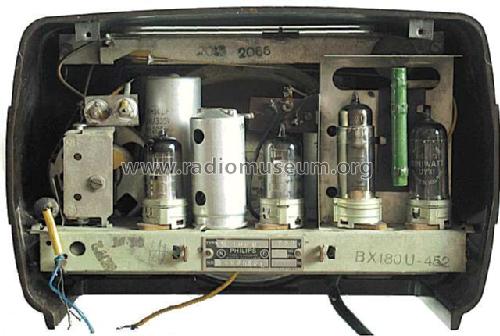

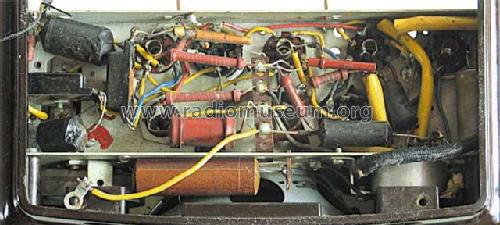

BX180U /00 /03 /04; Philips; Eindhoven (ID = 501178) Radio BX180U /00 /03 /04; Philips; Eindhoven (ID = 501180) Radio
BX180U /00 /03 /04; Philips; Eindhoven (ID = 501179) Radio BX180U /00 /03 /04; Philips; Eindhoven (ID = 56683) Radio
BX180U /00 /03 /04; Philips; Eindhoven (ID = 501184) Radio BX180U /00 /03 /04; Philips; Eindhoven (ID = 501182) Radio
BX180U /00 /03 /04; Philips; Eindhoven (ID = 501183) Radio BX180U /00 /03 /04; Philips; Eindhoven (ID = 44467) Radio

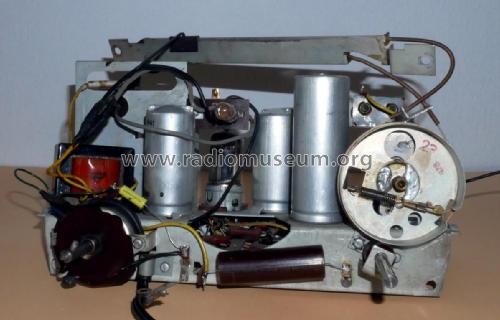

BX180U /00 /03 /04; Philips; Eindhoven (ID = 210324) Radio BX180U /00 /03 /04; Philips; Eindhoven (ID = 242186) Radio
Use red slider bar for more.
BX180U /00 /03 /04; Philips; Eindhoven (ID = 501178) Radio

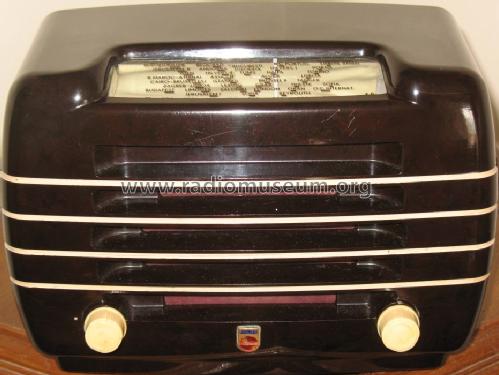

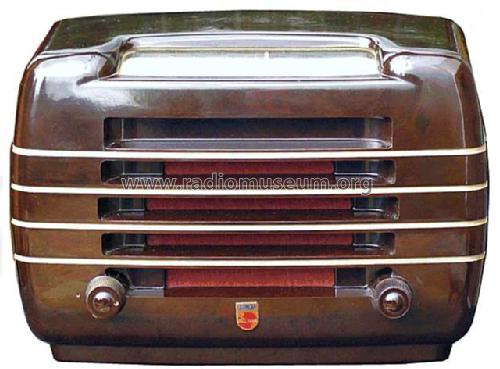

Philips; Eindhoven: BX180U /00 /03 /04 [Radio] ID = 501178 640x473
Select picture or schematic to display from thumbnails on the right and click for download.
For model BX180U /00 /03 /04, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1948/1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH41 UAF42 UL41 UY41
Main principle Superheterodyne (common); ZF/IF 452 kHz; 1 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch
Power out 1 W (unknown quality)
from Radiomuseum.org Model: BX180U /00 /03 /04 - Philips; Eindhoven tubes
Material Bakelite case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 250 x 170 x 150 mm / 9.8 x 6.7 x 5.9 inch
Notes
Early models may have UAF41 instead of UAF42.

AM radio for external antenna: only BC: 517 - 1620 kHz.
Loudspeaker: 9730X (5Ω).
Dial lamp: 8034D (E10, 10V/200mA).

The differences between versions /00, /03 and /04 are the cabinet and the buttons.
Net weight (2.2 lb = 1 kg) 2.5 kg / 5 lb 8.1 oz (5.507 lb)
Price in first year of sale 105.00 Hfl
Source of data Technisch- Commercieel - Radio Vademecum Staleman

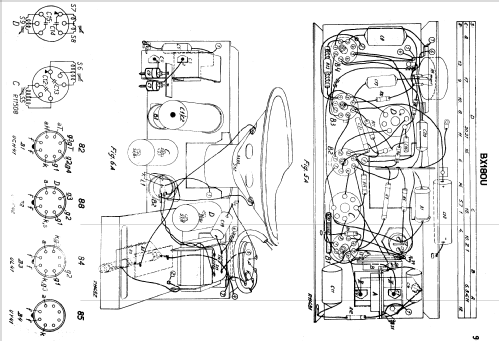

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Iven Müller. See "Data change" for further contributors.



All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
Here you find 5005 models, 4188 with images and 3343 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
