BX230U

BX230U; Philips; Eindhoven (ID = 44271) Radio

BX230U; Philips; Eindhoven (ID = 44272) Radio

BX230U; Philips; Eindhoven (ID = 44273) Radio

BX230U; Philips; Eindhoven (ID = 44274) Radio

BX230U; Philips; Eindhoven (ID = 44275) Radio

BX230U; Philips; Eindhoven (ID = 1630859) Radio

BX230U; Philips; Eindhoven (ID = 1630860) Radio

BX230U; Philips; Eindhoven (ID = 1630861) Radio

BX230U; Philips; Eindhoven (ID = 1630862) Radio

BX230U; Philips; Eindhoven (ID = 1630863) Radio
BX230U; Philips; Eindhoven (ID = 2294584) Radio BX230U; Philips; Eindhoven (ID = 96387) Radio
BX230U; Philips; Eindhoven (ID = 803024) Radio BX230U; Philips; Eindhoven (ID = 2149441) Radio
Use red slider bar for more.
BX230U; Philips; Eindhoven (ID = 2294584) Radio
Philips; Eindhoven: BX230U [Radio] ID = 2294584 1400x1062
Select picture or schematic to display from thumbnails on the right and click for download.
For model BX230U, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1953/1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UF41 UBC41 UL41 UY42
Main principle Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110-127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch
Power out
from Radiomuseum.org Model: BX230U - Philips; Eindhoven tubes
Material Bakelite case
Shape Tablemodel without bush buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 295 x 190 x 165 mm / 11.6 x 7.5 x 6.5 inch
Notes
AM radio with built-in ferroceptor:
  • LW: 150 - 261 kHz.
  • BC: 517 - 1622 kHz.
  • SW: 5,94 - 18,2 MHz.
Loudspeaker 9766X (5Ω).
Dial lamp: 8097D (E10, 19V/97mA).


Net weight (2.2 lb = 1 kg) 2.5 kg / 5 lb 8.1 oz (5.507 lb)
Price in first year of sale 145.00 Hfl

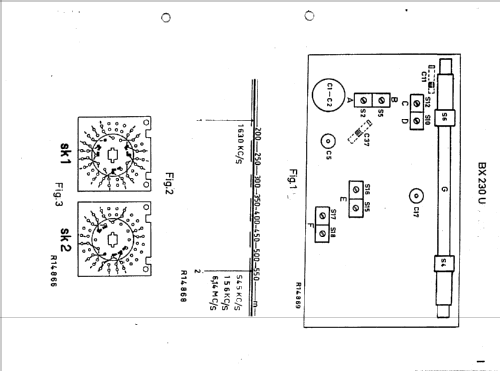

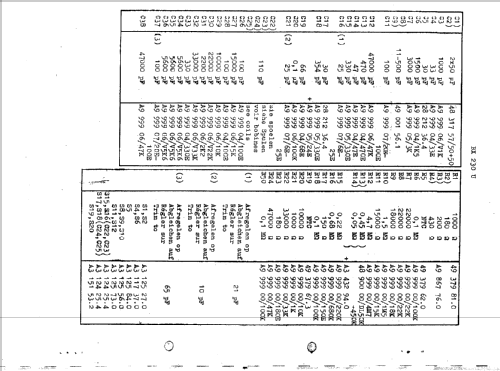

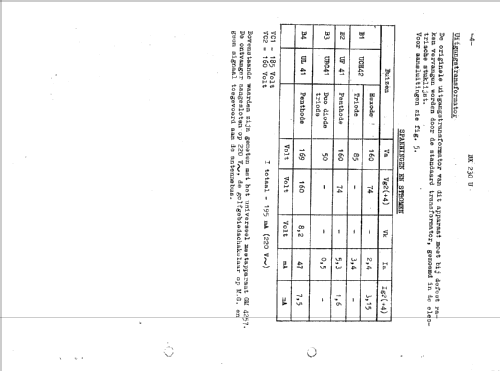

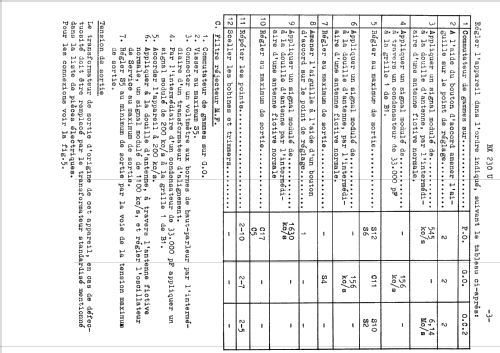

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Iven Müller. See "Data change" for further contributors.
