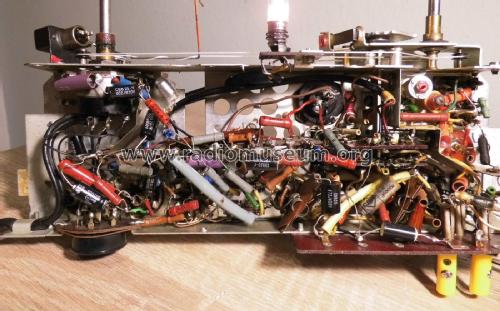

Philips; Eindhoven: BX233U /22 [Radio] ID = 1801165 933x715
Select picture or schematic to display from thumbnails on the right and click for download.
For model BX233U /22, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1953/1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UC92 UCH81 UF85 UABC80 UL41 UY41
Main principle Superheterodyne (common); ZF/IF 452/10700 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage AC/DC-set / 127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch
Power out
from Radiomuseum.org Model: BX233U /22 - Philips; Eindhoven tubes
Material Bakelite case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 328 x 220 x 146 mm / 12.9 x 8.7 x 5.7 inch
Notes
AM radio with built-in ferroceptor:
  • LW: 148 - 260 kHz.
  • BC: 518 - 1622 kHz.
FM radio with dipole antenna input: 87,5 - 100 MHz.

Loudspeaker: 9742X (5Ω).
Dial lamp: 8097D (E10, 19V/97mA).

Net weight (2.2 lb = 1 kg) 2.8 kg / 6 lb 2.7 oz (6.167 lb)
Price in first year of sale 155.00 HFL
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Iven Müller. See "Data change" for further contributors.
