BX233U /22

• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1953/1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 250825

• • Brand: Deutsche Philips-Ges.

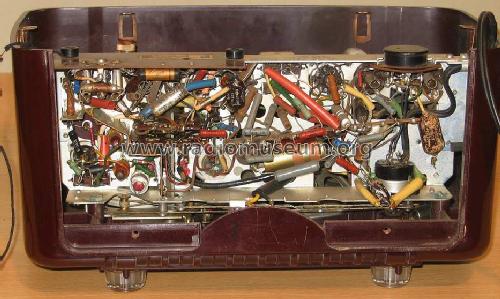

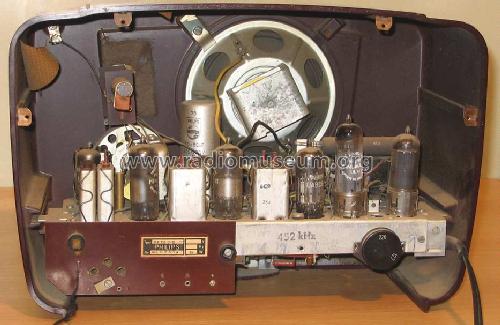

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• UC92 UCH81 UF85 UABC80 UL41 UY41

• Main principle
• Superheterodyne (common); ZF/IF 452/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• AC/DC-set / 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch

• Material
• Bakelite case

• from Radiomuseum.org
• Model: BX233U /22 - Philips Radios - Deutschland

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 328 x 220 x 146 mm / 12.9 x 8.7 x 5.7 inch

• Net weight (2.2 lb = 1 kg)
• 2.8 kg / 6 lb 2.7 oz (6.167 lb)

• Author
• Model page created by Gidi Verheijen. See "Data change" for further contributors.
