• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 96950

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH42 UAF42 UAF42 UL41 UY41

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110; 125; 200; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch

• Material
• Bakelite case

• from Radiomuseum.org

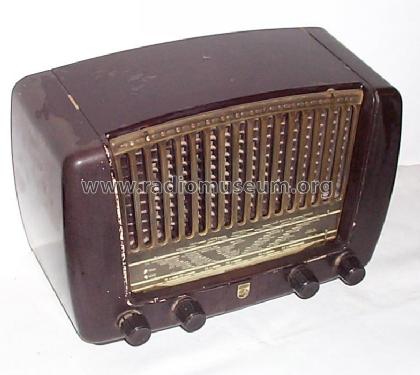

• Model: BX310U /00 /03 - Philips; Eindhoven tubes

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 385 x 250 x 200 mm / 15.2 x 9.8 x 7.9 inch

• Notes
• AM radio for external antenna:
  • LW: 152 - 275 kHz.
  • BC: 517 - 1622 kHz.
  • SW: 5,92 - 18,2 MHz.
  Loudspeaker: 9744X (5Ω).
  Dial lamp: 8097D (E10, 19V/97mA).

• Net weight (2.2 lb = 1 kg)
• 4.8 kg / 10 lb 9.2 oz (10.573 lb)

• Price in first year of sale
• 259.00 Hfl

• Source of data
• Technisch- Commercieel - Radio Vademecum Staleman

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by John Koster. See "Data change" for further contributors.
