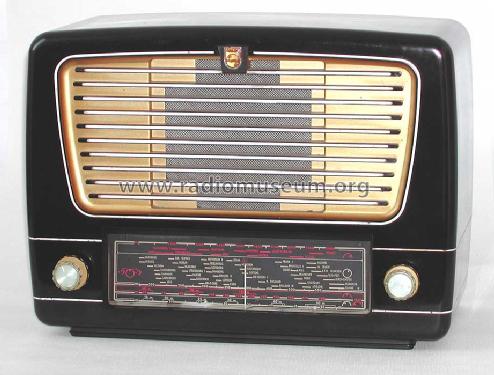

Philips; Eindhoven: BX330A /64 [Radio] ID = 75127 921x699

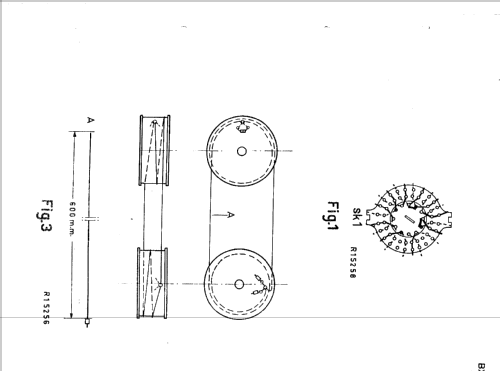

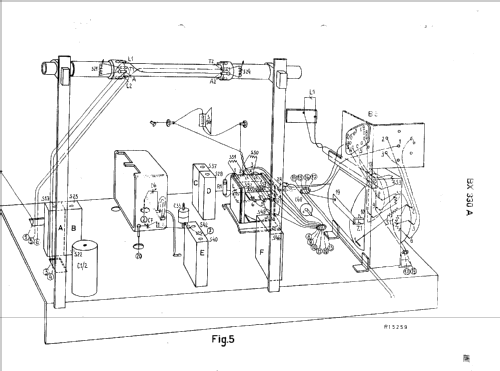

Select picture or schematic to display from thumbnails on the right and click for download.
For model BX330A /64, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1953/1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH81 EBF80 EBC41 EL84 EZ80
Main principle Super-Heterodyne (Super in general); ZF/IF 452 kHz
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: BX330A /64 - Philips; Eindhoven tubes
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 375 x 274 x 176 mm / 14.8 x 10.8 x 6.9 inch
Notes

Made in Belgium.

Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)

Model page created by Iven Müller. See "Data change" for further contributors.



All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
Here you find 4871 models, 4083 with images and 3256 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Philips; Eindhoven: BX330A /64
Threads: 1 | Posts: 1
Hits: 2975     Replies: 0
philips: BX330A (BX 330 A);
Ricardo M. Abreu
11.Jul.07
  1

I am restoring a Philips BX330A. Doing some research about this model, I found there are at least three variants of this model:

- BX330A

- BX330A-64

- BX330A-32

My set is a BX330A-64. The BX330A (without suffix) has three bands (LW, MW and only one SW band) while the BX330A-64 has four bands (LW, MW and two SW bands). The RF section has quite different: the BX330A-64 is much closer to the BX350A (with only minor differences).

We may say, loosely speaking, the BX330A-64 has the RF section of an BX350A and an audio section inherited from the regular BX330. I am reconstructing those schematics and hope to post them here soon.

In the BX330A pictures we can find the two types (just count how many bands are marked on the scale).

I don't know details about the BX330A-32. If someone has one of these units, I would be grateful for some more information.
