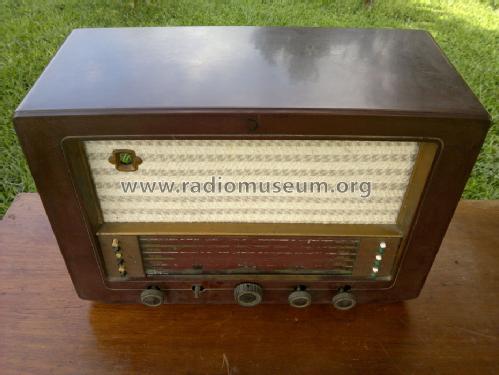

BX645A; Philips; Eindhoven (ID = 1344974) Radio
Philips; Eindhoven: BX645A [Radio] ID = 1344974 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model BX645A, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1954/1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: EF41 ECH81 EBF80 EBC41 EM34 EL84 EZ80
Main principle Superhet with RF-stage; ZF/IF 452 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 90; 110; 125; 180; 200; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: BX645A - Philips; Eindhoven tubes
Material Bakelite case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 550 x 385 x 240 mm / 21.7 x 15.2 x 9.4 inch
Notes

1 MW und 5 KW Bereiche mit Motorsteuerung.

Net weight (2.2 lb = 1 kg) 13 kg / 28 lb 10.1 oz (28.634 lb)
Price in first year of sale 398.00 Hfl
Source of data -- Original prospect or advert

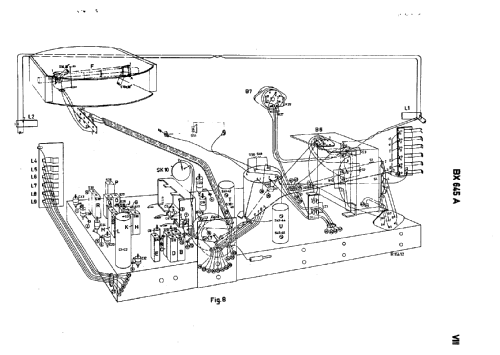

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Iven Müller. See "Data change" for further contributors.
