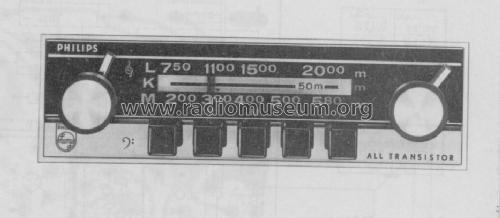

Cabrio 22RN564

Philips - Österreich

  • Year
  • 1967/1968
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 79640

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 11
  • Main principle
  • Superheterodyne (common); ZF/IF 460 kHz; 4 AF stage(s)
  • Tuned circuits
  • 9 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 4 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Cabrio 22RN564 - Philips - Österreich
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 181 x 54 x 178 mm / 7.1 x 2.1 x 7 inch
  • Notes
    • AM Radio.
      • LW: 150 - 400 kHz.
      • MW: 512 - 1610 kHz.
      • KW: 5.9 - 6.25 MHz (49m Band).
    • Verstärker: 1 x 4 Watt.

    • AM radio.
      • LW: 150 - 400 kHz.
      • BC: 512 - 1610 kHz.
      • SW: 5.9 - 6.25 MHz (49m band).
    • Amplifier: 1 x 4 Watt.
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
