Cairo Moving Sound D-1927

Philips do Brasil S.A.

  • Year
  • 1990 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • ID
  • 326960

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Dry Batteries / AAA: 2 x 1,5 Volt
  • Loudspeaker
  • - only for Earphone!
  • Power out
  • 0.05 W (undistorted)
  • Material
  • Plastics (no bakelite or catalin)
  • from
  • Model: Cairo Moving Sound D-1927 - Philips do Brasil S.A.
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 110 x 100 x 20 mm / 4.3 x 3.9 x 0.8 inch
  • Notes
  • "Moving Sound" was a product line created by Philips, characterized by a different design, designed to attract young people to the brand. One of the products in this line was the Cairo portable radio. It came with an arm strap and a headset.

    This is a portable radio featuring MW (530 - 1600 kHz) and FM Mono/Stereo (88 - 108 MHz).

    It uses four integrated circuits, one varicap and one LED as active components. One TA7358AP RF front-end (7001 in the circuit diagram), one TA7687AP AM/FM IF processor (7002), one TA7342P FM Stereo MUX (7003), and a KA2209 Dual Channel Audio Power Amplifier (7004). The FM IF frequency signal is passed through a E10.7S 10.7 MHz ceramic filter (1001). One varicap diode for AFC (6001) and one LED (6002).

    The audio output is specified at 25mW per channel at 10% distortion over a 32 Ohm headphones load.




  • Literature/Schematics (1)
  • - - Manufacturers Literature
  • Author
  • Model page created by Antonio Rabitti. See "Data change" for further contributors.

 Collections | Museums | Literature


The model Cairo Moving Sound is part of the collections of the following members.


Forum contributions about this model: Philips do Brasil S.: Cairo Moving Sound D-1927

Threads: 1 | Posts: 1

I have been browsing the Internet at the usual places looking for this Philips triangular shaped radio since a while. Then I bought one of these Brazilian made units.

1. I have been encountering this "Cairo" model radio with the exact same shape, RF bands and control knobs under two different model designations, as seen on the back cover label and package box:

  • D1927
  • AE6890

I don't see any specific differences between the two radio models, except for the color scheme that looks different between models, but that may not be the case. However, the package boxes for each model show different earphone shapes, suggesting different models.


2. As for manufacturing plants, at least two countries were involved in the assemblage of these radios:

  • P.R.C. - The most common when looking around;
  • Brazil - Less seen when compared to the Chinese units.


2.1. China made both model designations around the same time frame, as seen on the back cover limprinted date codes:

  • The ones I saw for the AE6890/00S show dates of 25/6/1985 and 27/8/1987;
  • And the ones for D1927/00 or D1927/00T shows just a date of 25/6/1986.


2.2. On the other hand, the Brazilian made models that I saw so far, do not show the model designation nor  any date codes on the outside of the cabinet as the Chinese ones do. At the back cover, a sticker label close to the Philips symbol imprint contains this text:

Industria Brasileira
M.C.T.D. - C.G.C. 04.395.869/0001-33
Produzido sob encomenda
na Zona Franca de Manaus
Sudam - Suframa - Sic

So these radios were also assembled at Sudam Manaus factories under "made to order" requests, but for some reason they did not use the same cabinet back covers with direct text imprints as seen on both of the Chinese model designations.

Manaus got the back covers with the usual "Philips" and Philips symbol imprints at two of the triangle corners as the Chinese ones, but the 3rd corner was left blank. Then Manaus have used a sticker label to identify the manufacturing country, and for some reason leaving the model designation omitted.

So I have opened my Brazilian made unit, only to find a sticker label inside with this text:

Type AE6890
Nr. 53536

I wonder if the Brazilian units were produced using both model designations as the Chineses did. But it seems that the two model designations are identical, at least when looking to the radio unit alone.

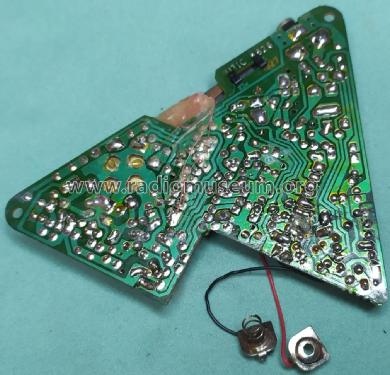

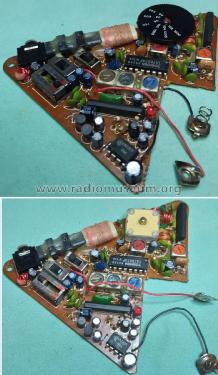

3. Components inside of my Brazilian D6890 model

The uploaded D1927 schematics omits the IC references, but it clearly identifies their functions, and I can confirm that on my AE6890 model the PCB components match the D1927 schematic diagram.

Here are the IC references:

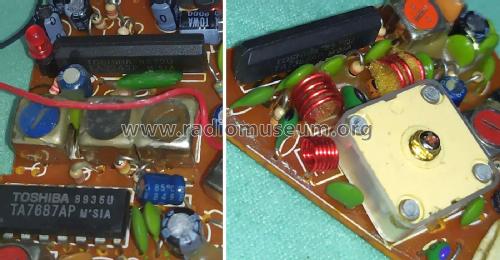

7001 TA7358AP 8937U Toshiba 9-pin SIP RF front-end
7002 TA7687AP 8935U Toshiba 16-pin DIP AM / FM IF processor
7003 TA7342P  8939U Toshiba 9-pin SIP FM Stereo MUX
7004 KA2209 944 Samsung 8-pin DIP Dual Channel Audio Pwr Amp

On my unit, the date codes suggests that it was made after 1989 week 44.



Jose Mesquita, 12.Jan.22
