Cassette Recorder D6350 /00

Cassette Recorder D6350 /00; Philips - Österreich (ID = 951240) R-Player Cassette Recorder D6350 /00; Philips - Österreich (ID = 951241) R-Player
Cassette Recorder D6350 /00; Philips - Österreich (ID = 951244) R-Player Cassette Recorder D6350 /00; Philips - Österreich (ID = 951655) R-Player
Cassette Recorder D6350 /00; Philips - Österreich (ID = 951656) R-Player Cassette Recorder D6350 /00; Philips - Österreich (ID = 1914753) R-Player
Use red slider bar for more.

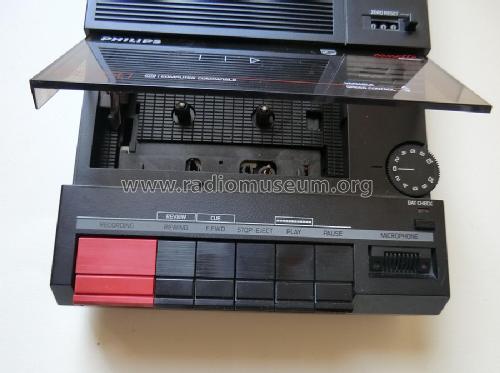

Cassette Recorder D6350 /00; Philips - Österreich (ID = 951240) R-Player
Philips - Österreich: Cassette Recorder D6350 /00 [R-Player] ID = 951240 605x900
Select picture or schematic to display from thumbnails on the right and click for download.
For model Cassette Recorder D6350 /00, Philips - Österreich

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1985 ? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Line / Batteries (any type) / 220 / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10.5 cm = 4.1 inch
Power out
from Radiomuseum.org Model: Cassette Recorder D6350 /00 - Philips - Österreich
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 183 x 50 x 280 mm / 7.2 x 2 x 11 inch
Notes Computer compatible, variable speed control, red LED for batt. check, built-in microphone, tape counter, two controls of tone. Sockets for additional external speaker, for headphone/line out, line in, mic, rem. Made in Austria.
Net weight (2.2 lb = 1 kg) 1.2 kg / 2 lb 10.3 oz (2.643 lb)

Model page created by Felice Nicolini. See "Data change" for further contributors.
