Cassette Recorder N5531 /00 /15

Philips Belgium (Belgien)

Data
Forum
Pictures
Collections

  • Year
  • 1980 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 249543

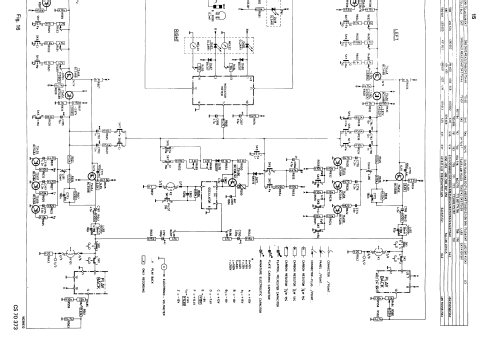

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player; Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Cassette Recorder N5531 /00 /15 - Philips Belgium Belgien
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 420 x 120 x 310 mm / 16.5 x 4.7 x 12.2 inch
  • Notes
    • Head Configuration
      • 2 Head Design
      • 4 Track / 2 Channel
    • Display
      • 3-Digıt Mechanical Counter
      • Analog Needle Meters
      • Transport
        • Auto Stop
        • Belt Drive (Capsŧan)
        • Mechanical Tape Loading
        • Sìngle Capsŧan Transport
      • Tape
        • Chrome Tape Capabılity
        • Normal Tape Capabılity
        • Metal Tape Capabılity
        • Manual Tape Type Selection
      • Operation
        • Cue / Review
        • Mechanical Transport Control
        • Memory Stop
      • Noise Reduction
        • Dolby-B Noise Reduction
        • MPX Filter
      • Connectivity
        • Headphones
        • 2 Mono Microphone Inputs
        • DIN Input/Output Connector
        • RCA Input/Output Connectors
        • AC Power Cord / Plug
      • Preamplifier
        • Individual Input Level Controls
        • Individual Output Level Controls
      • Exterior
        • Front Loading
        • Orientation Right
        • Silver Finish
      • Indicators
        • Record
        • Peak Indicator
      • General
        • Stereo
      • Electronics
        • Record Protection
      • Speed
        • 1⅞ ips - 4.76 cm/s
      • Power Requirements
  • Net weight (2.2 lb = 1 kg)
  • 4.2 kg / 9 lb 4 oz (9.251 lb)
  • Author
  • Model page created by Giuseppe Tedesco. See "Data change" for further contributors.
