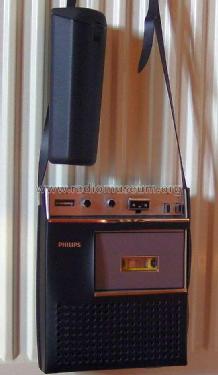

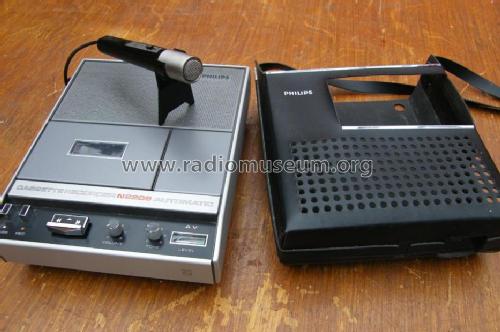

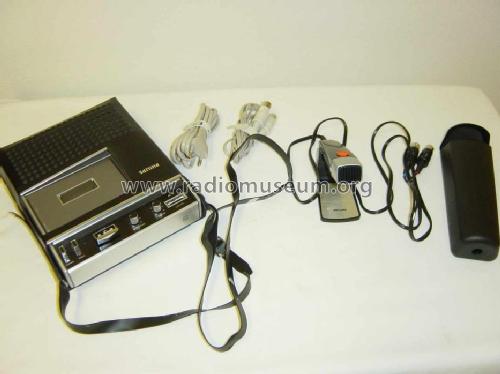

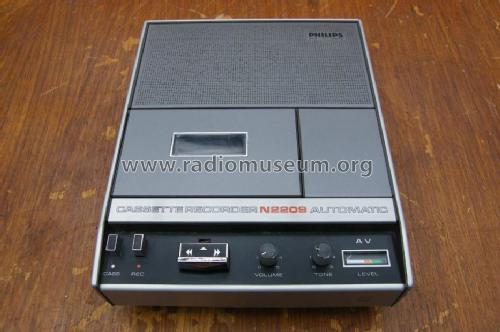

Cassette Recorder Automatic N2209 /00 /22

Philips - Österreich

  • Year
  • 1970/1971
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 28146

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 12
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 110; 220 / 6×1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 0.6 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Cassette Recorder Automatic N2209 /00 /22 - Philips - Österreich
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 215 x 60 x 170 mm / 8.5 x 2.4 x 6.7 inch
  • Notes
  • Übertragungsbereich: 60-10000 Hz.
  • External source of data
  • Erb
  • Literature/Schematics (1)
  • -- Original-techn. papers.
