• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1975–1977

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 83400

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors
• BC549 BC338 BC548 BC548 BC548 BC548 BC548 BC328 BC338 BD135 BD136 AC127 BA316 BA315 1N4001 AAZ17 BZX79

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 110; 220; (6 × 1,5) Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.75 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

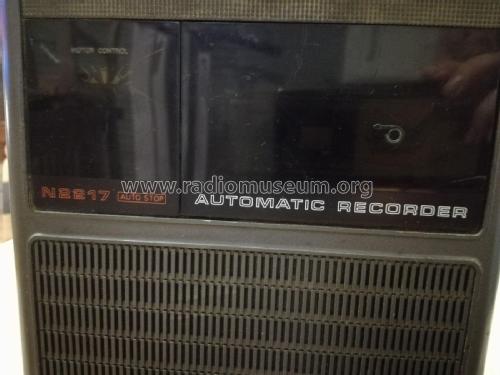

• Model: Cassetten-Recorder 2217 N2217 Automatic - Philips - Österreich

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 197 x 223 x 65 mm / 7.8 x 8.8 x 2.6 inch

• Notes
• Philips Cassetten-Recorder N2217 Automatic.
  Frequenzumfang: 80···10000 Hz; eingebautes Electret-Mikrofon; Kopfreinigungsanzeige.

• Net weight (2.2 lb = 1 kg)
• 1.5 kg / 3 lb 4.9 oz (3.304 lb)

• Source of data
• Handbuch VDRG 1975/1976 / Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Handbuch VDRG 1976/1977

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
